230V Underground Actuator 750 Cbac For Condominium Swing Leaves Faac 107720

Save €23,16
Model: eb-371320055221
Warranty: 24 months
Supplier: Faac
Price:
€440,00 €463,16
Do you need help with this product? Contact us
Whatsapp-Share
Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

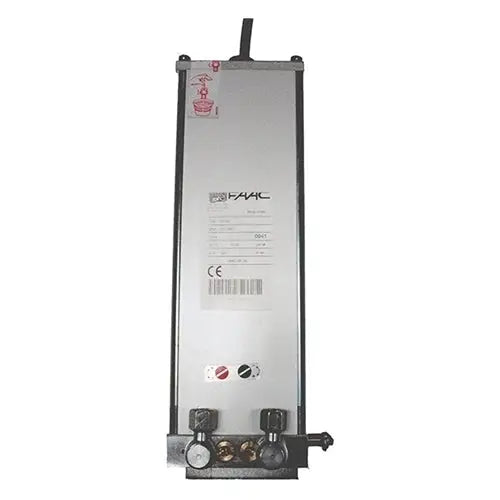

230V UNDERGROUND HYDRAULIC ACTUATOR 750 CBAC

With max weight of the single door 800 kg

FAAC HYDRAULIC control unitfor underground jack 750CP opening 100° (code 108759)
with lock on opening and closing.

Versatility and artful invisibility
The wide FAAC 750 range allows various choices: with or without hydraulic lock for gates
with doors in 3 models up to 3.5 meters in length per door. The underground system is invisible and extremely silent
and represents the ideal solution for antique style gates and doors of artistic value.
Great power and mechanical efficiency
The entire 750 range can easily automate gates weighing up to 800 kg per leaf. The system
it is composed of a robust and compact underground unit and an available hydraulic power unit
in three different models. All components are integrated into a hydraulic circuit for lubrication
and continuous cooling. The 750 CP range is designed with a carrying case,
making installation easier.
Security inside and out
Two very sensitive by-pass valves characterize the exclusive hydraulic device for maximum
anti-crushing safety. In case of emergency, a key-protected release device, in
easily accessible position, allows manual operation of the gate. The strength of
hydraulic block makes the system's resistance to intrusion attempts on the property exceptional.
Constant performance over time and reduced maintenance
Reliability is ensured in all weather conditions and at extreme temperatures: from -40°C to
+55°C. The FAAC hydraulic device requires very little maintenance and has an advantage
plus: low electricity consumption.

Mod. 107720

Technical characteristics of the hydraulic power unit

Power supply voltage 230 Vac (+6% -10%) 50 (60) Hz
Power consumption 220 W
Current absorbed 1 A
Engine rotation speed 1400 rpm
Pump flow rate 0.75 l/min
Operating ambient temperature -40°C ÷ +55°C
IP 55 protection rating
Thermoprotection on the motor winding 120°C
Weight 7kg
Type of oil FAAC HP OIL

Length max single leaf (m) 1.80

GREENTEch system: 750 CP + E045 or E145

- Invisible and silent operator, composed of an underground unit and a control unit
- Ideal solution for antique doors in style and of artistic value, leaves up to 2.5 m
- Easy installation thanks to the carrying case

Model: 750 CBAC
Mains supply voltage: 230V~ 50 Hz
Electric motor: Single-phase asynchronous
Max power: 220W
Max angular speed: 7.8°/s
Flow rate of motor-pump group: 0.75 lpm
Operating ambient temperature: -20°C ÷ +55°C
Thermoprotection: 120°C
Degree of protection: IP55
Weight: 7.5 kg
Type of oil: FAAC HP OIL
Dimensions (WxDxH): Control unit 353 x 245.6 x 141.5 mm


24 month warranty
