Description
Professional
** Use for doors up to 2.50 m and 200kg of weight **
Mod. VH 400mm 230V
Linear electromechanical actuator for condominium use, structure entirely in metal, stainless steel stem.
VH automatisms, once installed correctly, must no longer be treated,
Since their maintenance is practically nothing, the installation does not require any changes to the existing gate!
High performance electric motor.
The actuator is built for doors that do not exceed 200 kg of weight and 2.50 meters in length,
The actuator maintains the blockage in closing and opening without the need for electrosercture for doors,
Control unit with built -in receiver for ½ doors control.
Electronic clutch with comfortable and fast running adjustment, possibility to adjust the second -door delay.
Slowdowns at the opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the racing of the doors.
Click on the links for the instruction manuals:

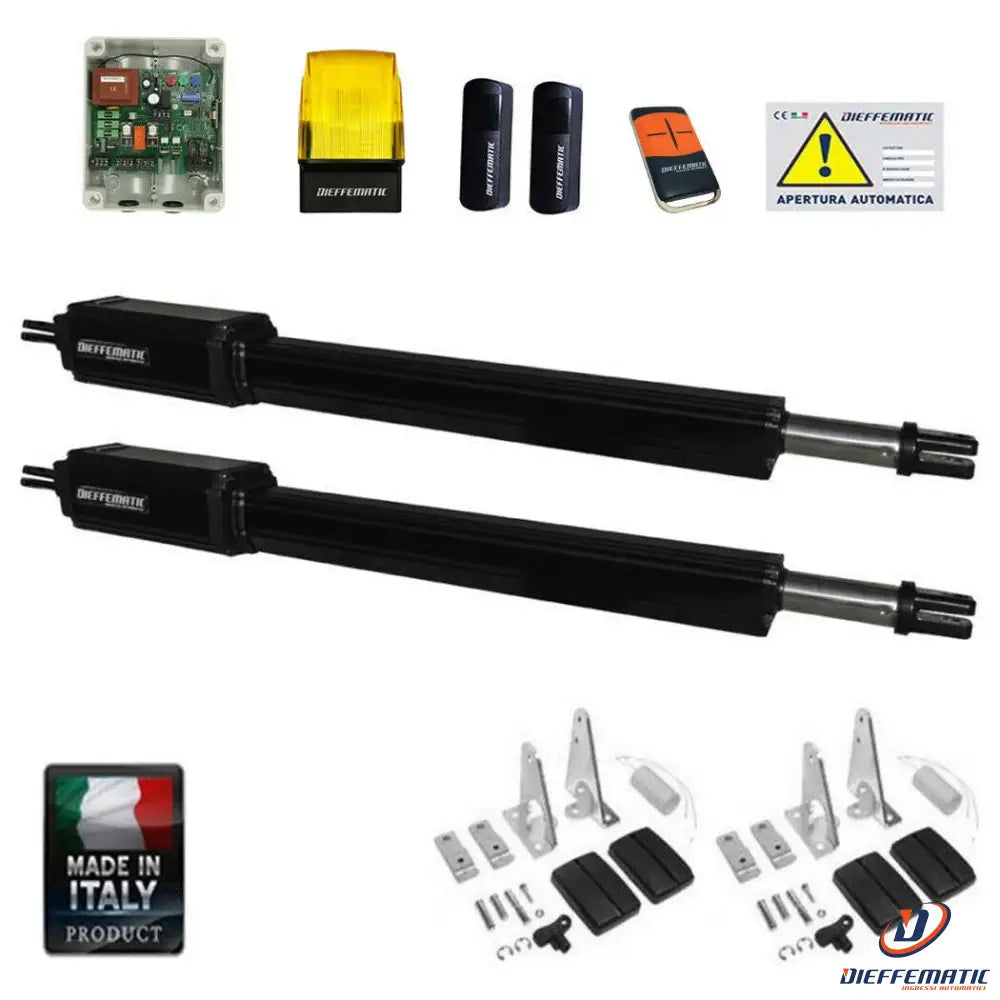

Composition of the kit:
n ° 2 linear electromechanical actuator for condominium use, for external uses
Emergency unlocking with key. It does not need electroserration.
1,400 engine turns. Potenza 200 W. Basket 1500 N. maximum opening angle 100 °.
Power supply 220 V. 50 Hz. Weight 6.5 kg
n ° 1 control unit with watertight box box, with adjustment adjustment trimmer and slowdown,
Eye surveillance detector, slowdown and closing slowdown, 4 operating logic: step-by-step,
Semi -automatic 1 and 2, condominium automatic. Pedestrian entrance, courtesy light, protection against survivors,
Entrance for photocells and safety coasts, electroserracting management, reversal blow,
Anta outfit in closure/opening adjustable,adjustment of the re-re-closing time.
N ° 1 Receiver Monocanal Radio built into the control unit (433.9 MHz)
n ° 1 antenna built into the control unit, brought 20 meters (433.9 MHz)
n ° 1 remote control 4 Rolling Code channels
n ° 1 pair photocell of wall
N ° 1 flashing 230V
N ° 1 Report signal
N ° 1 Accessories for installation, fixing brackets to bullied/welded with covers-staffe
n ° 1 assembly instructions of the mechanical and electronic part in Italian
24 months warranty
