Description

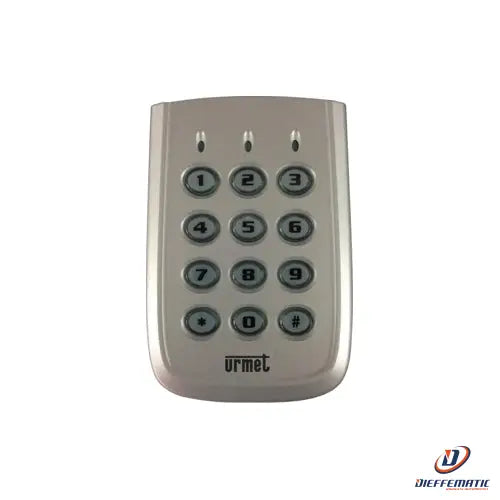

Access control keypad module, 1087, stand alone with plastic cover
Mod. 1087/1
SKU: 1087/1
The keyboard allows you to control 2 independent gates and manage 100 codes. Power supply 12-24 Vdc. 2 relays on board with the possibility of programming them in monostable/bistable or timed operation from 1 to 99s.
Activation codes can have 3 to 8 digits.
The LEDs on the front, yellow indicates that the button has been pressed, while the red and green LEDs can provide the status of the door or other indications.
Possibility of connecting an external timer to open the door at specific times.
• Power supply: 12-24Vdc
• Operating temperature:-20° +60°
• Relay contacts: 2 (8A @ 1A)
• Installation: wall mounted
• Relay timing: 1 - 99s
• No. of codes managed: 100
• No. of digits per code: 3 - 8
• IP protection class: 65
24 month warranty
