Description

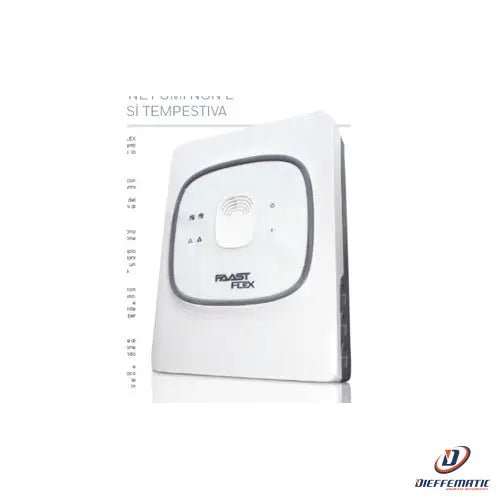

2-channel aspirating smoke detector, line 600
Mod. 1043/605
SKU: 1043/605
The FAAST FLEX aspirating smoke detector draws air through a network of tubes with sampling holes. Each tube inlet is equipped with a sensor that monitors changes in air flow in the tube, which can signal blockage of the holes, loss of tube tightness, alarm and pre-alarm. The air is filtered and conveyed into the detection chamber for analysis of any smoke particles.
FAAST FLEX can be configured and started using a dip switch without the need for special tools. The device is installed in a short time via a guided installation procedure.
• Length of linear tube 200 m (2 x 100 m)
• Length of pipe with branches 300 m (2 x 2 x 72 m)
• 3 output relays per channel (Pre-alarm, Alarm and Fault)
• Reset input
• Operating Temperature: -40°C to 55°C
• Max coverage 2,000 m²
• Ultrasonic flow sensors
• LED display
• Plastic container: IP 30
• Event memory: 2,100 events
• Silent operation: 30 db
• Class EN54-20 vs. No. of holes
• (Class A: 8 Holes, Class B: 20 Holes, Class C: 44 Holes)
24 month warranty
