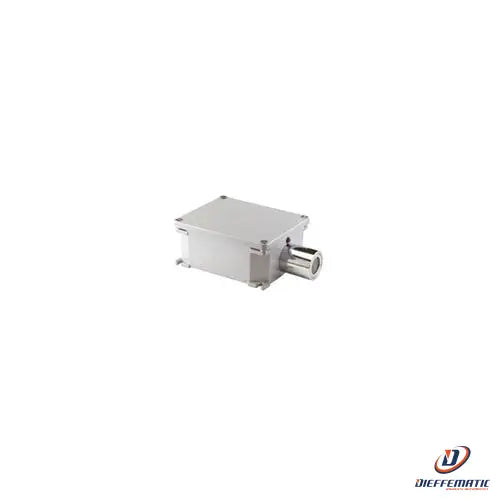

LPG gas detector 4-20 mA, IP55, line 700
Mod. 1043/703
SKU: 1043/703
ATEX certified gas detector with 4-20 mA proportional output.
Nemoto catalytic sensor.
Current consumption: 140mA@12Vdc.
Protection class IP55.
• Power supply 12 - 24Vdc - 20% + 15%
• Autozero procedure Compensation for zero drifts
• Flashing LED light signals
• Accuracy ± 10% of reading
• Preheating time 5 minutes
• Stabilization time < 2 minutes
• Response time < 15 sec. T50; < 25 sec. T90 (flammable gas version)
• Air velocity < 6 mS
• Digital filter Moving averages on acquired values
• Resolution 1,024 points
• IP55 protection rating
• Weight 350 g
• Dimensions (W x H x D) 106 x 170 x 65 mm
• Reference legislation
• EN50014 EN50018 EN50021 (essential safety requirements EEx-n) /EN61779-1/4 (performance)
• Atex CE marking 722 Ex II 2GD Ex d IIC Ex tD A21 IP65 T85°C
24 month warranty
