Urmet Connected Shutter Kit Nea Series 1054/10 Original Communication Warranty

Save £22.00

Model: eb-375502807120
Warranty: 24 months
Supplier: Urmet
Price:
£429.00 £451.00
COUPON 'BLACK10' -10%

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

Description

Connected kit, 5 roller shutters, Radio Power system, on NEA Simon-Urmet series double button, 500 W

Mod. 1054/10

SKU: 1054/10

The kit allows you to manage up to 5 motorized roller shutters, via YOKIS radio controls and wired buttons, and to connect the system to the Yokis Cloud in order to be able to manage the functions via the Yokis YnO app, both locally and remotely, voice assistants, Alexa and Google Assistant, and the definition of manual or automatic scenarios.
The kit is expandable with other devices from the Yokis radio line to allow the Yokis system to be extended at a later time.

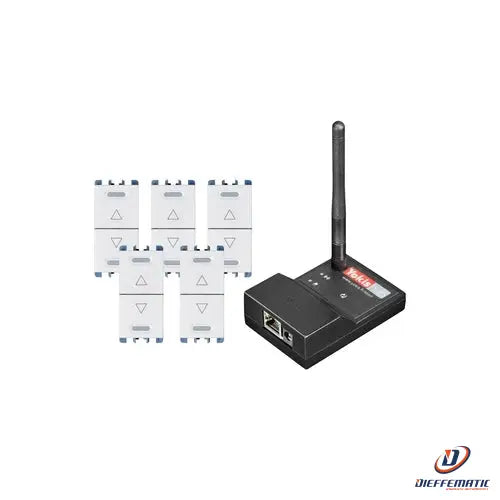

The kit consists of:
- n. 5 cod. 5454812 - Electronic roller shutter module, Radio Power system, on NEA Simon-Urmet series double button, 500 W
- n. 1 cod. 5454495 - IP/radio gateway YOKIS HUB, Radio Power system, to manage the Yokis system locally and remotely via the YnO app

YOKIS HUB:

• Power supply: Power adapter 230 Vac - 50 Hz / 9 Vdc (supplied)

• Power consumption: 1.4W max

• Protection: IP40 (without antenna)

• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads.

• Weight: 70 g (without power adapter)

• Dimensions (LxHxD): 60 x 86 x 27 mm


MVR500EBRP:

• Mains voltage: 230V ~ (+10% - 15%) - 50Hz

• Power: 3-wire motor, 230V~, 2A max.500VA

• Frequency range: 2.4Ghz

• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads

• Maximum Radio Transmission Power: 10mW

• Ambient temperature: -20°C + 50°C

• Consumption: < 1VA - < 0.3W

• Relative humidity: 0 to 99%

• Dimensions: 1 module

• Installation type: Modular - Nea Civil Series

24 month warranty

eb: 375502807120
