Connected Kit, Smart Light, Radio Power System
Mod. 1054/5
SKU: 1054/5
Smart Luce radio connected kit for controlling lights and actuations: allows you to control 2 ON/OFF actuations and 2 dimming actuations, via YOKIS radio commands and wired buttons, and to connect the system to the Yokis Cloud in order to be able to manage the functions via the Yokis YnO app, both locally and remotely, voice assistants, Alexa and Google Assistant, and the definition of manual or automatic scenarios.
Ideal as a basic connected kit for controlling the lights in a room or as an extension of an existing non-connected installation.

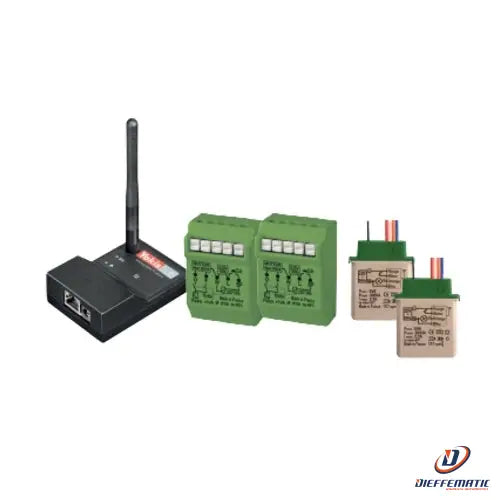

The kit consists of:
- n. 2 cod. 5454462 - Electronic relay module step by step with timer, 2000W, Radio Power system, built-in, with neutral
- n. 2 cod. 5454457 - Timed electronic dimmer module, 500W, Radio Power system, built-in, with neutral
- n. 1 cod. 5454495 - IP/radio gateway YOKIS HUB, Radio Power system, to manage the Yokis system locally and remotely via the YnO app
YOKIS HUB:
• Power supply: Power adapter 230 Vac - 50 Hz / 9 Vdc (supplied)
• Power consumption: 1.4W max
• Protection: IP40 (without antenna)
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads.
• Weight: 70 g (without power adapter)
• Dimensions (LxHxD): 60 x 86 x 27 mm
MTR2000ERP:
• Mains voltage 230 V~ (± 15%) - 50 Hz
• Power: on resistive load 10 A - 250 VAC, max. 2500 VA; other loads 10 A - 30 VDC max 300W
• Consumption < 1 VA - < 0.3W
• Room temp. - 20 °C + 60 °C
• Sound level < 60 dB at 20 cm
• Relative humidity from 0 to 70%
• Range: in the same room < 100 m2; 250 m in a clear and unobstructed field of vision (Radio range reduced in the presence of metal elements, crossing walls or bulkheads)
• Frequency: 2.4GHz
• Transmission: Bidirectional with notification LED on the transmitter (If the LED does not flash, this does not mean that the batteries are faulty, but that the radio transmission has failed) Maintains the data in the event of a power failure.
• Dimensions 48 x 33 x 22.5 mm
MTV500ERP:
• Mains voltage: 230V ~ (+10% - 15%) - 50Hz
• Power: min. 5VA max. 500VA (300VA in watertight boxes)
• Maximum current: 1.3A / 2.2A waterproof boxes: 1.3A /300VA other boxes: 2.2A /500VA
• Ambient temperature: -20°C + 40°C
• Relative humidity: 0 to 90%
• Dimensions (LxHxD): 37 x 46 (+25) x 12 mm
24 month warranty
