Description
Connected kit for 7 roller shutters, Radio Power system
Mod. 1054/7
SKU: 1054/7
The kit allows you to manage up to 7 motorized roller shutters, via YOKIS radio controls and wired buttons, and to connect the system to the Yokis Cloud in order to be able to manage the functions via the Yokis YnO app, both locally and remotely, voice assistants, Alexa and Google Assistant, and the definition of manual or automatic scenarios.
The Kit is expandable with other devices from the Yokis radio line to allow the Yokis system to be extended at a later time.

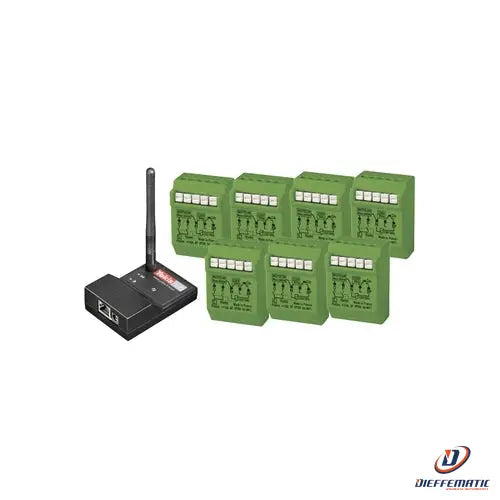

The kit consists of:
- n. 7 cod. 5454467 - Electronic roller shutter module, 500W, Radio Power system, built-in
- n. 1 cod. 5454495 - IP/radio gateway YOKIS HUB, Radio Power system, to manage the Yokis system locally and remotely via the YnO app
• MTR2000ERP:
• Mains voltage 230 V~ (± 15%) - 50 Hz
• Power: on resistive load 10 A - 250 VAC, max. 2500 VA; other loads 10 A - 30 VDC max 300W
• Consumption < 1 VA - < 0.3W
• Room temp. - 20 °C + 60 °C
• Sound level < 60 dB at 20 cm
• Relative humidity from 0 to 70%
• Range: in the same room < 100 m2; 250 m in a clear and unobstructed field of vision (Radio range reduced in the presence of metal elements, crossing walls or bulkheads)
• Frequency: 2.4GHz
• Transmission: Bidirectional with notification LED on the transmitter (If the LED does not flash, this does not mean that the batteries are faulty, but that the radio transmission has failed) Maintains the data in the event of a power failure.
• Dimensions 48 x 33 x 22.5 mm
YOKIS HUB:
• Power supply: Power adapter 230 Vac - 50 Hz / 9 Vdc (supplied)
• Power consumption: 1.4W max
• Protection: IP40 (without antenna)
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads.
• Weight: 70 g (without power adapter)
• Dimensions (LxHxD): 60 x 86 x 27 mm
24 month warranty
