Description

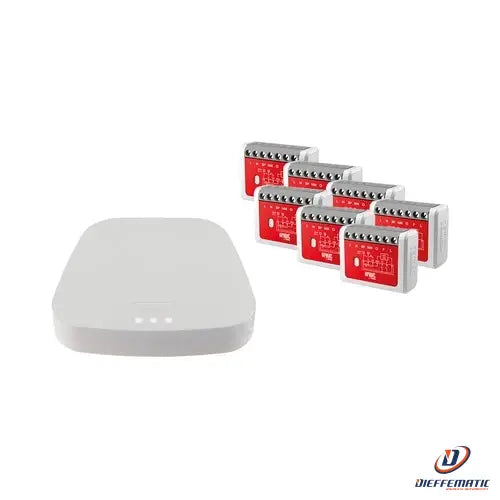

Connected kit, 7 roller shutters, Radio UP system
Mod. 1054/17
SKU: 1054/17
The kit allows you to manage up to 7 motorized roller shutters, via Yokis UP radio controls and wired buttons, and to connect the system to the Urmet Cloud in order to be able to manage the functions via the Yokis YnO UP app, both locally and remotely, voice assistants, Alexa and Google Assistant, and the definition of manual or automatic scenarios.
The Kit can be expanded with other devices from the Yokis UP range to allow the Yokis system to be extended at a later date.
The kit consists of:
- n. 7 cod. 4820409- Electronic roller shutter module, 500W, Radio UP system, built-in
- n. 1 code 4820411- GATE-UP IP/radio gateway, Radio UP system
MVR500E-UP:
• Mains voltage: 230V ~ (+10% - 15%) - 50Hz
• Power on load: 2A max. 500VA
• Stand-by consumption: 1.3VA - 0.7W
• Ambient temperature: -20°C + 60°C
• Relative humidity: 0 to 90%
• Degree of protection: IP30
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
• Radio protocol: Zigbee
• Maximum transmitted radio power: 10 mW
• Radio frequency band: 2400.0 - 2483.5 MHz
• Dimensions (LxHxD): 34.7 x 44.1 x 18.5 mm
GATE UP:
• Power supply: USB DC 5V to 5.25V 2A
• Radio protocol: Zigbee
• Radio frequency band: 2400.0 - 2483.5 MHz
• Maximum transmitted radio power: 10 mW
• IP network connection: Ethernet RJ45 or Wi-Fi 2.4GHz and 5GHz
• Ambient temperature: -20°C to +40°C
• Relative humidity: 0 to 90%
• IP protection grades: IP30
• Installation: table and wall mounted
24 month warranty
