Description
Connected kit, 5 lights, Radio UP system
Mod. 1054/15
SKU: 1054/15
UP radio connected kit for the management of 5 Zigbee radio lights: allows you to control 4 lights in ON/OFF mode and 1 light in dimming mode, via radio controls from the Yokis UP range and wired buttons, and to connect the system to the Urmet Cloud in order to be able to manage the functions via the Yokis YnO UP app, both locally and remotely, voice assistants, Alexa and Google Assistant, and the definition of manual or automatic scenarios.
Ideal as a basic connected kit for controlling the lights in a room or as an extension of an existing non-connected installation.

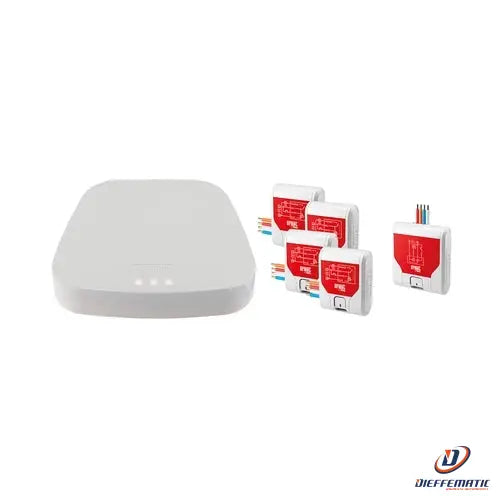

The kit consists of:
- n. 4 cod. 4820404- Electronic relay module step by step with timer, 500W, Radio UP system, built-in
- n.1 cod 4820408 - Electronic timed dimmer module, 300W, Radio UP system, built-in, with neutral
- n. 1 code 4820411- GATE-UP IP/radio gateway, Radio UP system
MTR500E-UP:
• Mains voltage: 230 V~ (± 15%) - 50 Hz
• Power on load: 2A - 500VA (resistive); 1A - 250VA (other loads)
• Stand-by consumption: < 0.8VA - < 0.4W
• Ambient temperature: -20°C + 60°C
• Relative humidity: 0 to 90%
• IP protection rating: IP30
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
• Radio protocol: Zigbee
• Maximum transmitted radio power: 10 mW
• Radio frequency band: 2400.0 - 2483.5 MHz
• Dimensions (LxHxD): 29.1 x 36.7 x 13 mm
MTV300E-UP:
• Mains voltage: 230 V~ (± 15%) - 50 Hz
• Power on load: 1.3A - 300W (resistive); 0.6A - 125VA (other loads)
• Stand-by consumption: < 0.8VA - < 0.4W
• Ambient temperature: -20°C + 40°C
• Relative humidity: 0 to 90%
• IP protection rating: IP30
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
• Radio protocol: Zigbee
• Maximum transmitted radio power: 10 mW
• Radio frequency band: 2400.0 - 2483.5 MHz
• Dimensions (LxHxD): 40 x 45.7 x 13.1 mm
GATE UP:
• Power supply: USB DC 5V to 5.25V 2A
• Radio protocol: Zigbee
• Radio frequency band: 2400.0 - 2483.5 MHz
• Maximum transmitted radio power: 10 mW
• IP network connection: Ethernet RJ45 or Wi-Fi 2.4GHz and 5GHz
• Ambient temperature: -20°C to +40°C
• Relative humidity: 0 to 90%
• IP protection grades: IP30
• Installation: table and wall mounted
24 month warranty
