Light base kit, Start Light, Radio Power system
Mod. 1054/4
SKU: 1054/4
Start Luce radio kit for controlling lights and actuations: allows you to control 2 ON/OFF actuations and 1 dimming actuation.
Ideal as a basic kit for controlling the lights of a room or as an extension of an existing installation. Thanks to the transmitter with 4 independent channels, it is possible to manage the three modules directly and their centralization.

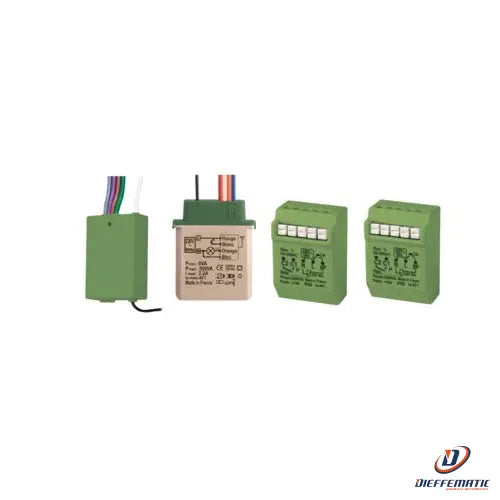

The kit consists of:
- n. 2 cod. 5454462 - Electronic relay module step by step with timer, 2000W, Radio Power system, built-in, with neutral
- n. 1 cod. 5454457 - Electronic timed dimmer module, 500W, Radio Power system, built-in, with neutral
- n. 1 cod. 5454427 - Transmitter with 4 independent channels, Radio Power system, built-in
MTR2000ERP:
• Mains voltage: 230 V~ (± 15%) - 50 Hz
• Power on resistive load: 10A - 250VAC, max. 2500VA; on other loads: 10A - 30VDC max. 300W
• Consumption: < 1 VA - < 0.3W
• Ambient temperature: -20°C + 60°C
• Noise level: < 60 dB at 20 cm
• Relative humidity: 0 to 70%
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads
• Frequency: 2.4 GHz
• Transmission: Bidirectional with notification LED on the transmitter Dimensions (LxHxD): 33 x 48 x 22.5 mm
MTV500ER:
• Mains voltage: 230V ~ (+10% - 15%) - 50Hz
• Power: min. 5VA max. 500VA (300VA in watertight boxes)
• Maximum current: 1.3A / 2.2A waterproof boxes: 1.3A /300VA other boxes: 2.2A /500VA
• Ambient temperature: -20°C + 40°C
• Relative humidity: 0 to 90%
• Dimensions (LxHxD): 37x46 (+25) x12 mm
E4BPP:
• Battery: type CR2032, lithium
• Battery life: > 7 years
• Available channels: 4
• Number of receivers/channel: 4 in direct mode; unlimited in Bus Radio mode
• Range: 250m in a clear and unobstructed field of view. Range reduction in the presence of metal elements, crossing walls or bulkheads.
• Frequency: 2.4GHz
• Transmission: Bidirectional with notification LED on the transmitter. Operating temperature: - 10°C to +50°C
• Relative humidity: maximum 70%
• Protection: IP54
• Dimensions (LxHxD): 28.5 x 40 x 11.5 mm
24 month warranty
