1-output interface for digital control units, line 500
Mod. 1043/549
SKU: 1043/549

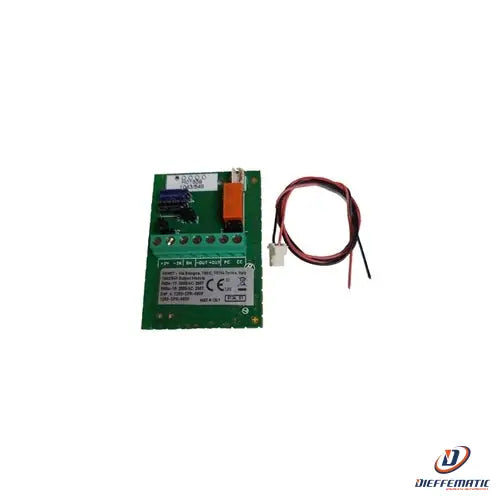

The 1043/549 interface is an output module for driving plates, sirens or any other type of actuator. It does not require external power because it is powered directly from the detection line.
• Operating voltage: 20Vdc (-15% + 10%) modulated
• Current consumption in alarm condition: 2mA@20Vdc
• Quiescent current: 250µA @ 20Vdc
• Two-color LED for alarm and status signaling
• Contact output: 1A@30Vdc
• Local voltage supervision input: Opto isolated input 24 Vdc (-15%, +10%)
• Operating temperature: -10°C ÷ +55°C
• Dimensions (L x H x D): 66 x 46 x 17 mm
• Weight: 30 g
• EN54-17-18 Certification No. 1293-CPR-0829
24 month warranty
