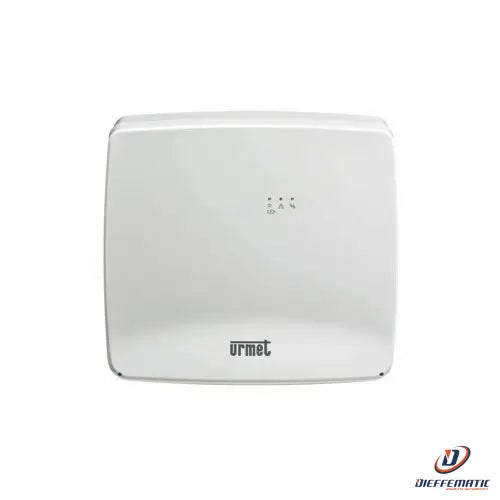

Multifunctional 10-input intrusion control unit expandable to 66, 1068
Mod. 1068/010
SKU: 1068/010
The 1068/010 control panel offers 10 inputs expandable up to 66, with 8 partialization zones. The system is able to manage both wired and wireless devices and integrate video surveillance products that can be controlled locally and remotely, via smartphone and tablet.
The system is multilingual, EN50131 certified and is able to manage emergency calls and transmit numeric protocols to security institutes.
The communication vectors used are multiple: in fact the 1068 System can communicate via IP protocol (WiFi and Ethernet) or the GSM network.
The system is programmed and configured either via the keypad or via the 1068SET application, a simple and intuitive Android tablet app dedicated to installers.
The user control devices are: the keypad, the proximity key readers, the electronic key readers, the time programmer and the Urmet Secure application.
• Power supply voltage: 230Vac
• Maximum current supplied by the power supply: 1.5A
• Max. current deliverable to the field: 900 mA
• Battery that can be housed: 1 pc 12v@7A
• Basic number of entries: 10
• Max. number of entries: 66
• Max. number of partitionable zones: 8
• Multilingual menu
• App Installer (programming and configuration): 1068SET
• User App (management): URMET SECURE
• Integrated speech synthesis, resides in PSTN and GSM Communicators
• Self-learning of devices on Bus
• Time Programmer
• Auxiliary input functions: Gong, Courtesy Light, Door Opener
• Event memory: 1,000
• 868 MHz Two-Way Radio Interface: Optional
• IP Communicator: Optional
• GSM/GPRS Communicator: Optional
• Remote surveillance: Sending alarms and reports via DC05 and DC09 numeric protocols
• Max. length of the bus line: 400 m + 400 with Repeater
• Degree of protection: IP40
• Weight: 1.3 Kg
• Dimensions (W x H x D): 290 x 275 x 95 mm
24 month warranty
