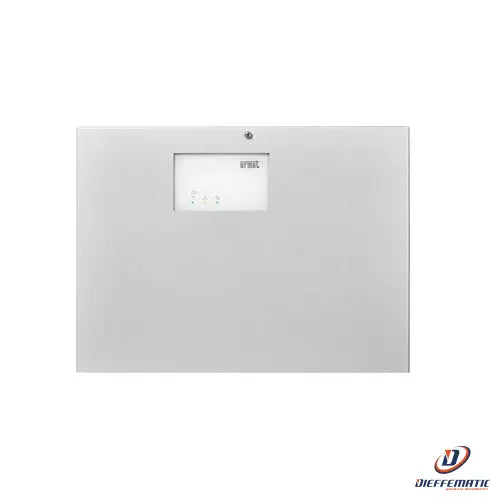

Multifunctional 10-input intrusion control unit expandable to 122, 1068
Mod. 1068/015
SKU: 1068/015
The 1068 system is the ideal solution for creating medium and large sized intrusion detection systems. Minimal design and cutting-edge technology are the Concept of the new product. It is easily scalable and meets all the needs of the tertiary market
The system can be managed locally and remotely, via
mobile devices such as smartphones and tablets.
It is a flexible system, it communicates with wireless devices, it is
equipped with IP and GSM communication vectors. It has an APP for the user (APP URMET SECURE) and an APP for the installer (APP 1068set) with which to configure and manage the system.
• Product specifications
• Power supply voltage: 230Vac
• Maximum current supplied by the power supply: 3.4A
• Max. current deliverable to the field: 2.2A
• Battery that can be housed: 1 pc 12v@18A
• Number of basic inputs: 10 (these inputs can be "split" with the possibility of detecting cuts, shorts and distinguishing each of the 2 inputs)
• Max. number of entries: 122
• Number of basic outputs: 7
• Max. number of outputs: 49
• Max. number of sectors: 8
• Free association of entrances to the zones
• Multilingual menu
• App Installer (programming and configuration) 1068SET
• User App (management) URMET SECURE
• Programming storage on micro SD card, to transfer programming between tablet and control unit or save a back-up copy
• Device firmware update via micro SD Card or IP interface cod. 1068/013
• Integrated speech synthesis, resides in GSM Communicators
• Self-learning of devices on Bus
• Time Programmer
• Entrance specializations
• Auxiliary functions of the Gong, Courtesy Light, Door Opener inputs
• Exit specializations
• Alarm counting per input
• Programming codes Master, Technician, Technical Manager, User
• Max. number of activation codes 64
• Max. number of keys: 64
• Event memory: 1000
• 868 MHz Two-Way Radio Interface: Optional
• IP Communicator: optional
• GSM/GPRS communicator: optional
• Remote surveillance Sending alarms and reports via DC05 and DC09 numeric protocols
• Max. length of the bus line: 800 m (400 m basic + 400 m with Repeater)
• Degree of protection: IP40
• Weight: 5.6 Kg
• Dimensions (W x H x D): 435 x 320 x 93 mm
• EN50131 grade 3 certification.
24 month warranty
