Description

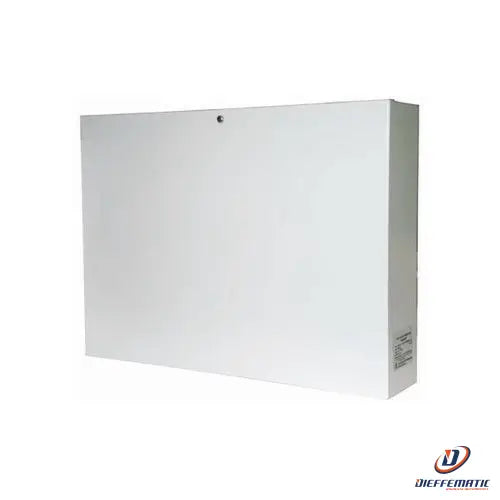

Intrusion control panel with 8 inputs expandable to 128, metal container, 1067
Mod. 1067/052A
SKU: 1067/052A
The 1067/052A control unit manages 8 basic inputs expandable up to 128 with 16 partialization zones, integrable with wireless devices, video surveillance devices and smart home devices, controllable locally and remotely, via smartphone and tablet.
The system is multilingual, EN50131 certified and is able to manage emergency calls and transmit numeric protocols to surveillance institutes. The communication vectors used are multiple: in fact the 1067 control panel can communicate via LAN (Ethernet) or use GSM or the telephone network (PSTN).
The system is programmed and configured either via the keyboard or via the FASTPRO application, a PC management software. The user control devices are: the keyboard, the proximity key readers, the electronic key readers, the time programmer and the FASTPRO application.
The control unit is ideal for medium and large-sized systems in residential, tertiary and industrial environments with high safety requirements. EN50131 grade 3 certification.
• Power supply voltage: 230Vac
• Max. current supplied by the power supply: 3.4A
• Max. current deliverable to the field: 2.5A
• Battery that can be housed: 1 pc 12V@18A
• Number of basic inputs: 8
• Max. number of inputs: 128
• Number of basic outputs: 6
• Max. number of exits: 51
• Max. number of partitionable zones: 16
• Max. number of sectors that can be partitioned: 4
• Free association of entrances to the zones
• Free association of zones to sectors
• Multilingual menu
• User App (management)
• SW application (programming and configuration via PC)
• USB interface for data saving/configuration
• Self-learning of devices on Bus
• Time programmer
• Specialization of inputs and outputs
• Auxiliary input functions: Gong, Courtesy Light, Door Opener
• Alarm counting per input
• Programming codes: Master, Technician, Technical Manager, User
• Max. activation codes: 64
• Max. number of keys: 64
• Max. management of devices on bus: 39
• Event memory: 1,000
• 868 MHz two-way radio interface
• Web server management
• Communication vectors: PSTN - GSM/GPRS
• Integrated gate control function
• Video surveillance function
• Remote surveillance: sending alarms and reports via numeric protocols
• Container: Metallic
• Degree of protection: IP40
• Weight: 5.6 kg
• Dimensions (W x H x D): 435 x 320 x 93 mm
24 month warranty
