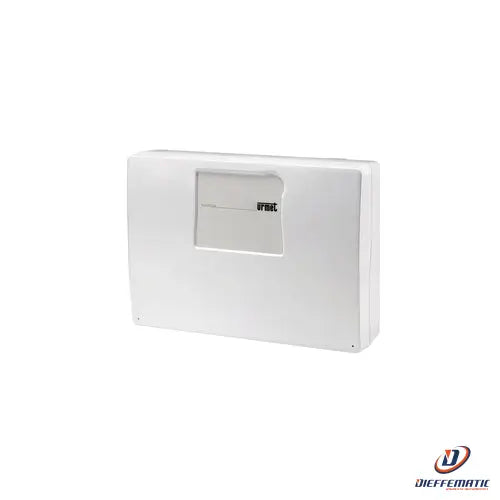

4-input intrusion control unit expandable to 32, 1067
Mod. 1067/024
SKU: 1067/024
The 1067/024 control unit can manage 4 freely associable zones, 4 inputs expandable to 32 and can be activated via code keypads, electronic keys, proximity keys and Apps.
It has a simple and intuitive user interface and voice and digital communicators for the transmission of alarm information, both to users and to Security Institutes, great versatility of dialogue: it is in fact compatible with all communication vectors (IP/PSTN/GSM/GPRS), it is equipped with a Web server and Cloud.
The system is characterized by a wide variety of performances: it communicates on a bus line, it is modular, flexible and expandable. It is designed to perform technological and home automation services, it combines control and video surveillance functions.
The control unit is suitable for any type of application and is intended in particular for small-sized systems: its field of application therefore ranges from residential environments with high safety requirements to those of the tertiary sector (shops, medical offices, etc.). EN50131 grade 2 certification.
• Power supply voltage 220 Vac - 24 Vac
• Max. load deliverable 1.5A
• 12V@7A battery can be housed
• ABS container
• Number of basic inputs 4
• Max. number of inputs 32
• Max. number of zones 4
• Max. number of sectors 2
• Free association of entrances to the zones
• Free association of zones to sectors
• Programming of intrusion, technological, fire, panic, robbery, tampering, fault, key, pre-alarm inputs
• Selectable inputs Instant, delayed, 24h, silent
• Alarm counting per input
• Installer code
• User code
• Max. management of devices on bus 11
• Management of max. 16 access codes
• Event memory 1,000
• Integrated gate control function
• Optional 868 MHz two-way radio interface
• Optional web server management
• Remote management via PC using application software
• Optional video surveillance function
• Optional PSTN telephone communicator
• Optional GSM/GPRS telephone communicator
• USB interface Data/configuration saving
• Remote assistance Configuration and modification of system parameters
• Remote surveillance Sending alarms and reports via numeric protocols
• Dimensions (W x H x D) 340 x 240 x 80 mm
24 month warranty
