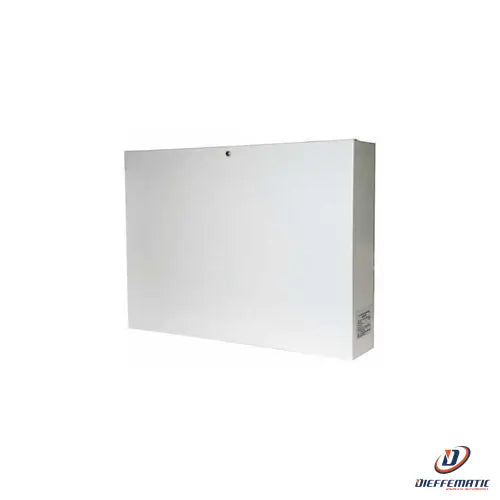

Additional power supply with BUS signal repeater and expansion card, 1067 and 1068
Mod. 1067/092
SKU: 1067/092
Additional power supply with bus signal repeater and expansion board. The additional power supply unit is an optional device for the 1067/052A and 1068/010 control panels.
It is equipped with an electronic board that integrates a 1067/008A type expansion directly connected to the control panel bus, a Repeater module to extend and isolate the control panel bus section, and an additional power supply unit capable of powering the devices connected to the system.
• Switching power supply: 3.4 A
• Battery that can be housed: 1 pc 12V@15A
• 8 programmable inputs
• 3 programmable outputs
• 2 outputs for auxiliary power supplies
• 1 power output for self-powered devices
• Acquisition button and LED
• Metal container
• Degree of protection: IP40
• Weight: 5.6 kg
• Dimensions (W x H x D): 435 x 320 x 93 mm
24 month warranty
