Description
Horn Speaker ABS Audio Replacement Siren Impedance 4 Ω Power 15 W High Frequency Sounds from 1.3 ± 20 KHz 100 dB Oscillating Diaphragm on Permanent Magnet - SP-G10ARSSPLC
Mod. SP-G10ARSSPLC
SKU: SP-G10ARSSPLC

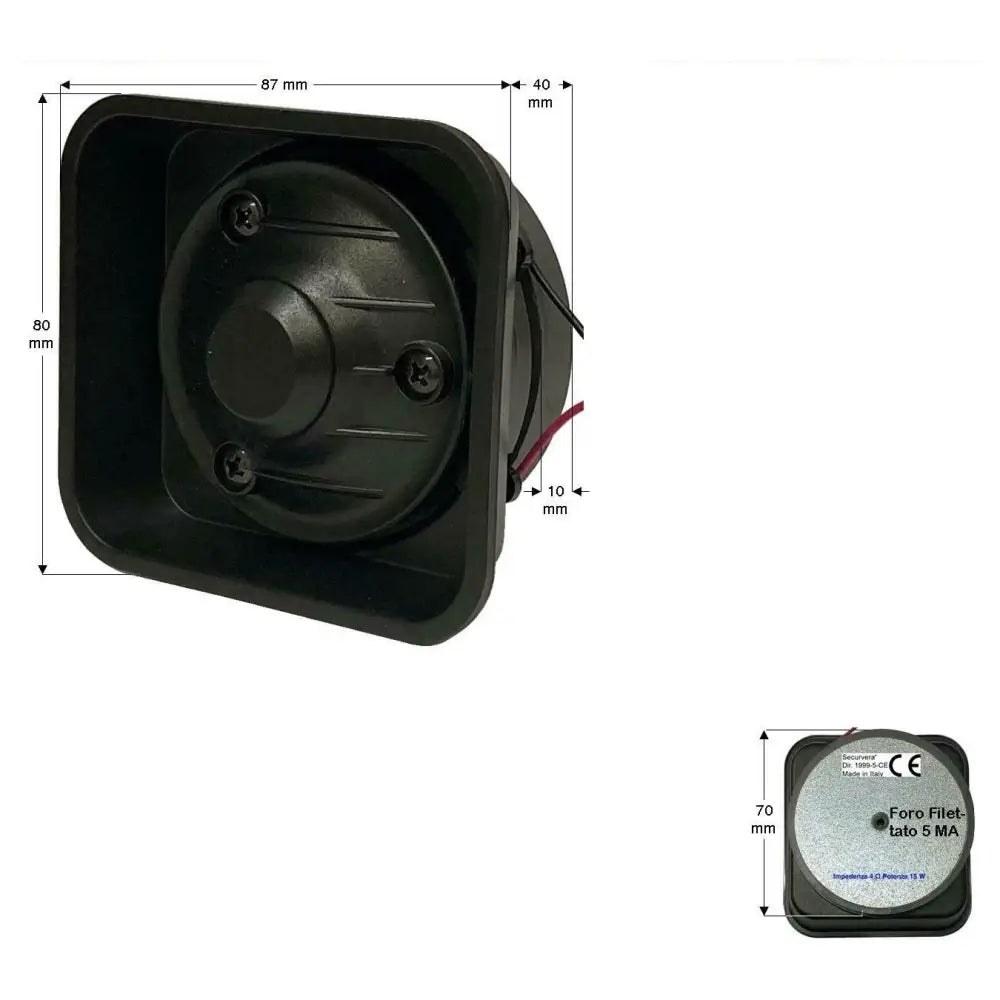

SP-G10 Exponential magnetodynamic horn or loudspeaker. Coil resistance or Impedance 4 Ω ± 15%. Power 15 W. Resonance frequency 1.3 ± 20 KHz. SPL @ 1W/1m: 100dB. Operating temperature - 20° + 60° C. Permanent magnet Ø 69 mm; thickness 15 mm. Rounded circumrectangular shape. Horn or acoustic speaker in phonic ABS. Shape External dimensions L87XH80XP40 mm. Weight 428 gr. Equipped with 2 wires of approximately 200 mm. for the connection. Warning never apply direct current as it would burn immediately, the loudspeaker is used on special amplifier circuits, whether it is used as a sound diffuser for a siren or as a sound reproducer. The product is tested, new and in perfect working order, it is not guaranteed against improper use. The buyer knows that he is purchasing a component of a system and declares that he possesses the technical requirements necessary for use. In particular, it is the replacement speaker for the Standard Alarm sirens. Original product built to our specifications; Selected and guaranteed by Securvera. Compliance with CEI 79/2-3 safety standards. CEI EN 50130-4 Directives CE marking directive 99/5/CE. Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects.
LIST OF SPARE PARTS FOR SIRENS INSTALLED ON BURGLAR ALARM AND SECURITY SYSTEMS OF ANY BRAND:
01 SP-G10 Magnetodynamic Horn or Loudspeaker Impedance 4 Ω Power 15 W. Frequency 1.3 ± 20 KHz. SPL 1m: 100dB
01 SV-GAR 24 Month, Lifetime Warranty Certificate Against Factory Defects: Installation by Qualified Personnel DM37/2008
01 SV-IST Detailed Assembly Instructions Must Be Respected: Fixings Special Connections (PDF Manual)
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You can find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Replacement Sirens of any brand and type with same characteristics
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal False Key Control Sabotage Inhibition Circuit
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Forms or Payment Systems: State Deductions or Tax Accounting by Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Item Code Model Type: SP-G10ARSSPLC Replacement Magnetodynamic Horn 4 Ω 15 W Sounders
