Description

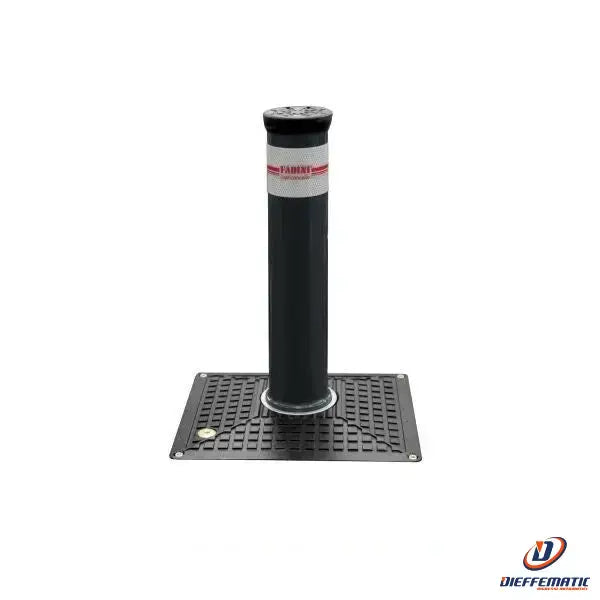

CORAL 1050 fully concealed hydraulic bollard
• Designed and built
to regulate and prohibit private vehicular passages, driveways, parking lots and accesses
urban in general.
Column diameter 100 mm. Available in various column heights; Also
with LEDs. Rubber edge protector on the lid.
• Hydraulics
quick and easy access to the hydraulic control unit and the hydraulic piston.
Manual release with key to lower the column. Tested for use
intensive even at low or high temperatures. Simplified maintenance.
• Quick and easy installation
thanks to the low weight and the containment formwork, it does not require any particulars
excavations or building works. Each electric cable is 10 m long (standard).
• Versatile
wide range of control accessories (transmitters, tags, numeric keypads,
etc.) and safety (magnetic loop detector, traffic lights, etc.) to ensure a
efficient and accurate control of the systems.
The ELPRO S40 electronic programmer manages up to four bollards
simultaneously.
CORAL 1050 mod
Column diameter: Ø 100 mm
Column thickness: 5 mm
Column height: 500 mm
Column material: Fe 360 steel
Column finish: RAL 7016 polyester powder paint
Formwork: hot dip galvanized
Rise time: ~4.7 s
Fall time: ~4.4s
Operating temperature: -20°C +80°C (*)
Type of oil: Oil FADINI cod. 708L
Supply voltage: 230 Vac - 50 Hz
Power Consumption: 330W
Current consumption: 1.8A
Power output: 0.25 kW (0.33 HP)
Hydraulic unit protection degree: IP 67
Frequency of use: intensive
Impact resistance: 30,000 J
Breakthrough resistance: 150,000 J
Weight: 86kg
Column diameter (mm): 100
Height (mm): 500
Limit switch: column lowered
Column finish: Ral 7016 Anthracite Grey
Signaling LED: No
Solenoid valve (24 Vdc): No
NOTE: Retractable column operated by a hydraulic piston, with built-in hydraulic control unit. 230 V power supply, 10 m of electrical cables.
Cataphoresis treated Fe steel column and polyester powder painting. Approved retro-reflective sticker.
Special key supplied for lowering the column manually.
All models are already supplied with the brick-in formwork, in hot-dip galvanized steel. The piston-hydraulic control unit containment group is
treated with electrolytic zinc plating.
For each bollard with solenoid valve, a 24 V voltage stabilizer, code 9321L.
24 months warranty
