Description

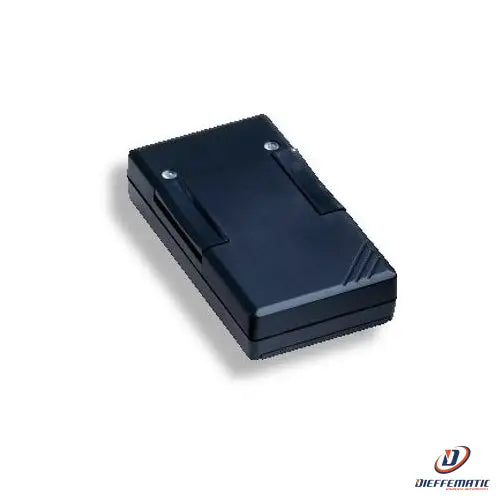

2 FUNCTION POCKET TRANSMITTER
Container in shockproof plastic material.
Powered by 9 V "GLF22" type dry battery.
Overall dimensions 54 x 108 x 22
Mod. TRQ038200.EUR
27.195 MHz "AM"
16,384 PROGRAMMABLE CODES
VIA 14-WAY DIP-SWITCH BINARY
AVAILABLE CHANNELS 2-8
NUMBER OF CODES AVAILABLE 16,384
TRANSMITTER RANGE 100 - 700 m
Highly reliable radio controls for remote activation of equipment
electrical and electronic.
The wide range of models offered allows you to solve all problems
of the system, providing the user with maximum safety. The use of technologies
avant-garde, the scrupulous choice of materials and a design aimed at
obtain maximum performance and functionality, even in extreme conditions; they have
allowed us to achieve a high standard of product quality. For transmitters
become objects that accompany the user at any time of the day,
electronic reliability is accompanied by the ergonomic lines of the containers.
The S38 radio control allows the remote activation of electrical equipment
and electronic, finds its best use in the control of opening systems
automatic and in all systems where remote actuation is required (without
wires) protected by a highly reliable secret code.
The radio control system is made up of one or more transmitters and one or more
receivers that will be combined in relation to the specific needs of the system.
The use of miniature transmitters allows a range of 150-200m while with
pocket transmitters the range increases up to 300-700 m with the use of an antenna
Cardin tuned (the flow rate values are intended in free space without disturbances
radios). A complete and safe system, created with everyone's rigor and quality
CARDIN products.
PROGRAMMABLE CODES
The S38 series uses a programmable coding system based on a dip-switch
14-way track. In receivers, versions from 1 to 4 channels, code programming yes
carried out via 14-way DIP-SWITCH allowing 16,384 combinations. The use of
8 button transmitters allows code programming in 4 and 8 button receivers
channels via 13-way DIP-SWITCH allowing 8192 combinations. Programming
can be carried out several times even after installation, with the
consequent possibility of guaranteeing the secrecy of the user code.
24 month warranty
