Description
Awning Motor
50 NM
With emergency maneuver
Professional
Max capacity 100 kg
CLICK ON THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL
Highly reliable actuator with mechanical limit switch, where attention to detail is combined with ease of installation.
The particular care in the design of the motor head has allowed the overall dimensions to be kept to a minimum,
allowing you to operate even in those installation situations where the space available is extremely limited.
Thanks to an innovative "Easy CLAP" coupling system, the assembly of any model in the range becomes extremely quick
and is reduced to a simple snap of the support on the motor head.
Wide range of adapters, accessories and supports that allow any installation requirement to be covered.
BEFORE PURCHASING, YOU MUST CHECK THE DIAMETER OF THE ROLLER.
TO AUTOMATE THE AWNING YOU NEED A 70MM OR 78MM ROLLER.
IF THE 60MM ROLLER IS PRESENT, IT MUST BE REPLACED WITH THE 70MM OGIVE VERSION

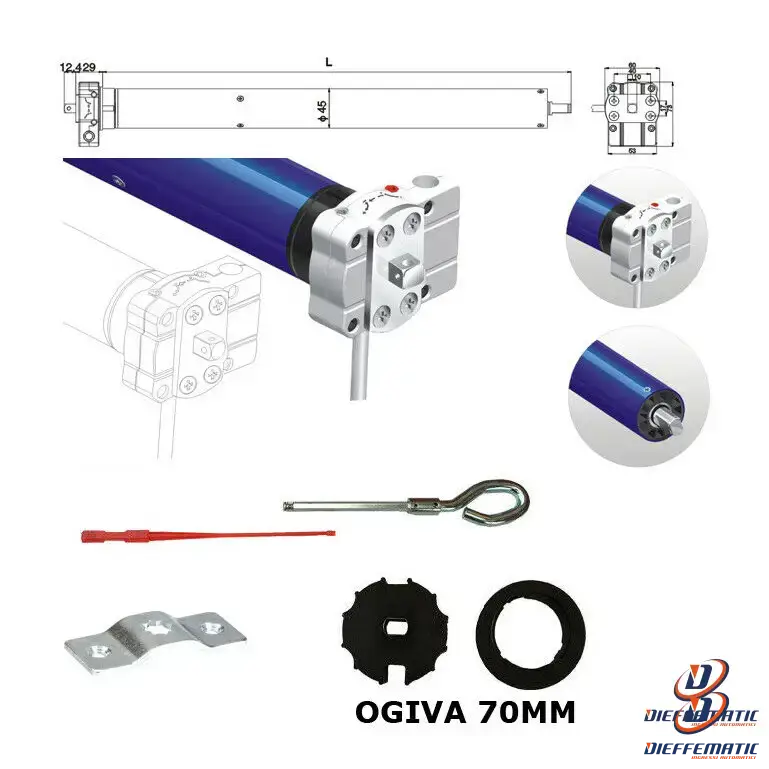

Rectangular bracket, 70 mm adapter OGIVE included in the package
Tubular gear motor for awning.
Mechanical limit switch in opening and closing.
Extremely simple assembly.
230 Vac power supply.
torque: 50nm
rpm 12
n. final laps: 26
time before thermal: 4 min
absorbed power: 232W
absorbed intensity: 1.1 A
Engine length: 57 cm
weight: 4.5 kg
2 year warranty
