Motor Kit For Rolling Shutter Acm Unititan And Hr 170kg With Electric Brake Control Unit 1tx

Save £7.00

Model: eb-223542845025
Warranty: 24 months
Supplier: DIEFFEMATIC
Price:
£142.00 £149.00

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

Automation KIT forRolling shutters

Capacity 170kg

ACM UNI TITAN E

Professional

Kit Motore Per Serranda Acm Unititan E Hr 170kg

Kit Motore Per Serranda Acm Unititan E Hr 170kg

The quality of the materials makes this motor light, silent and compact, guaranteeing excellent operating life.
The TITAN series allows quick and easy motorization of commercial and garage roller shutters.

Characteristics:

Power supply 230 Vac - 50 Hz

Extremely simple assembly, even on existing shutters,

thanks to the property of the device to break up into two parts to be rejoined on the spring-holder axis.

Easily adjustable built-in limit switches.

The reducer is irreversible with blocking of the damper in closing, but the relative manual release is present.

Electric brake is factory fitted.

Body cast in aluminium, mechanics in steel alloys.

Permanent lubrication with lithium grease

The motor is suitable for 60-48mm axles, for 42-33mm axles the adapter must be requested.

External crown diameter 200mm, 220mm adapter included.

CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:

MECHANICAL INSTALLATION MANUAL

ELECTRONIC INSTALLATION MANUAL

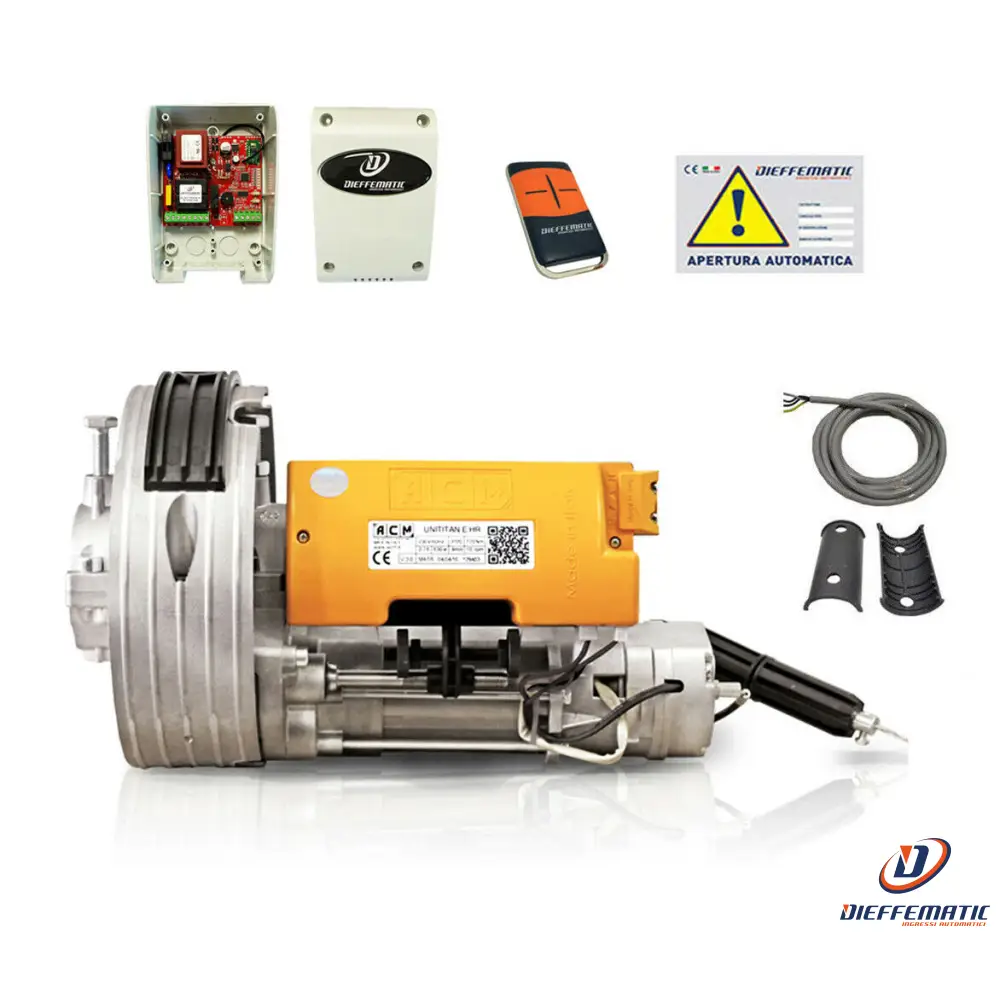

KIT COMPOSITION:

n° 1 Electromechanical actuator, cast aluminum structure, high-performance electric motor.
Power supply 220 V. 50 Hz. Weight 8.3 kg

n° 1 control unit with watertight box, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic.

Protections against overvoltages, input for photocells and safety band.

n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)

n° 1 Antenna incorporated into the control unit, range 20 meters (433.9MHz)

n° 1 Electric brake with Release

n° 1 4-channel Rolling Code remote control

n° 1 Pair of wall-mounted photocells

n° 1 Warning sign

n° 1 Installation accessories

n° 1 Assembly instructions of the mechanical and electronic part in ITALIAN

24 months warranty
