Description
Rolling Shutters
Capacity 170kg

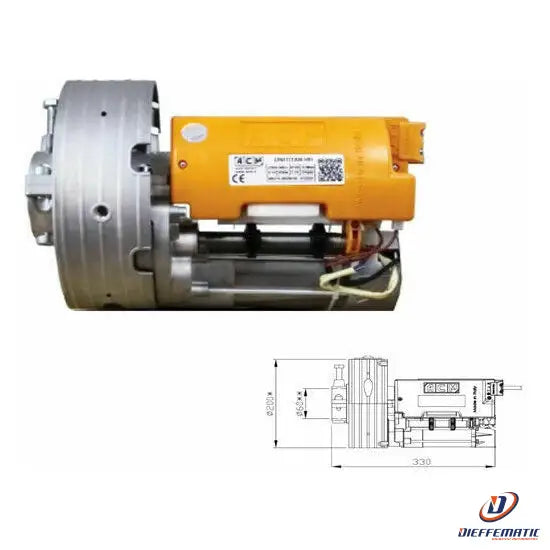

ACM UNI TITAN
Professional
The quality of the materials makes this motor light, silent and compact, guaranteeing excellent operating life.
The TITAN series allows quick and easy motorization of commercial and garage roller shutters.
Characteristics:
Power supply 230 Vac - 50 Hz
Extremely simple assembly, even on existing shutters,
thanks to the property of the device to break down into two parts to be rejoined on the spring holder axis.
Easily adjustable built-in limit switches.
The reducer is reversible.
Body cast in aluminium, mechanics in steel alloys.
Permanent lubrication with lithium grease
The motor is suitable for 60-48mm axles,for 42-33 mm axles you need to ask the adapter.
External crown diameter 200mm, 220mm adapter included.
CLICK ON THE LINK FOR THE MANUALS:
MECHANICAL INSTALLATION MANUAL
KIT COMPOSITION:
n° 1 Electromechanical actuator, cast aluminum structure, high-performance electric motor.
Power supply 220 V. 50 Hz. Weight 8.3 kg
Protections against overvoltages, input for photocells and safety band.
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
