Description

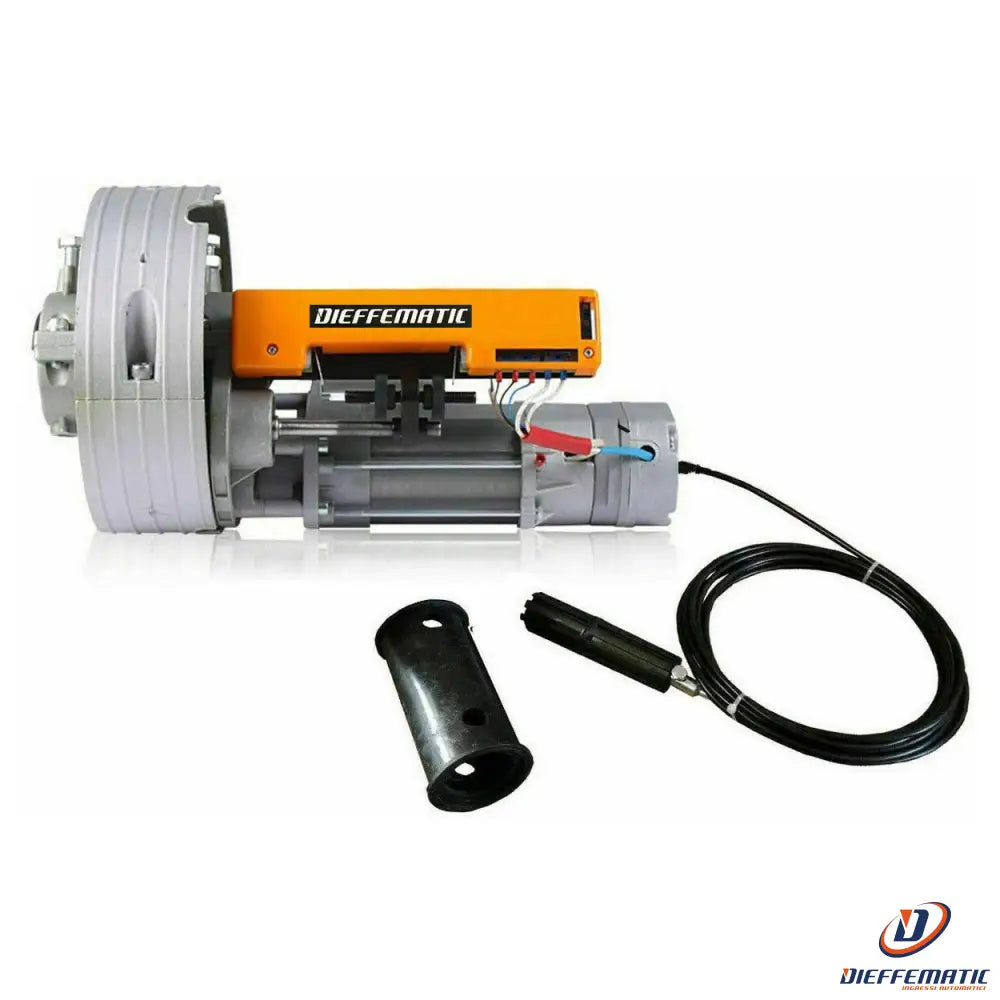

Automation for rolling shutters
Capacity 140kg
Professional
The quality of the materials makes this motor light, silent and compact, guaranteeing an excellent working life.
The BIG series allows quick and easy motorization of commercial and garage roller shutters.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
Characteristics:
Power supply 230 Vac - 50 Hz
Extremely simple assembly, even on existing shutters,
thanks to the property of the device to break down into two parts to be rejoined on the spring holder axis.
Easily adjustable built-in limit switches.
The reducer is irreversible with the closing shutter blocked, but there is a relative manual release.
Electric brake is factory fitted.
Body cast in aluminium, mechanics in steel alloys.
Permanent lubrication with lithium grease
The motor is suitable for 60-48mm axles,for 42-33 mm axles you need to ask the adapter.
Outer crown diameter 200mm, 220mm adapter included.
KIT COMPOSITION:
n° 1 Electromechanical actuator, cast aluminum structure, high performance electric motor.
Power supply 220 V. 50 Hz. Weight 8.3 kg
n° 1 Electric brake with release knob
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
