Kit Set Automation Doors Windows Fixtures Vasistas Wasistas Apricolor 230v

Professional

Chain actuators for windows and doors

BLACK COLOUR

Chain actuator for top-hung and top-hung windows.

Exclusive quick fixing system of the actuator to the window.

Compatible with a wide range of GACS series profiles

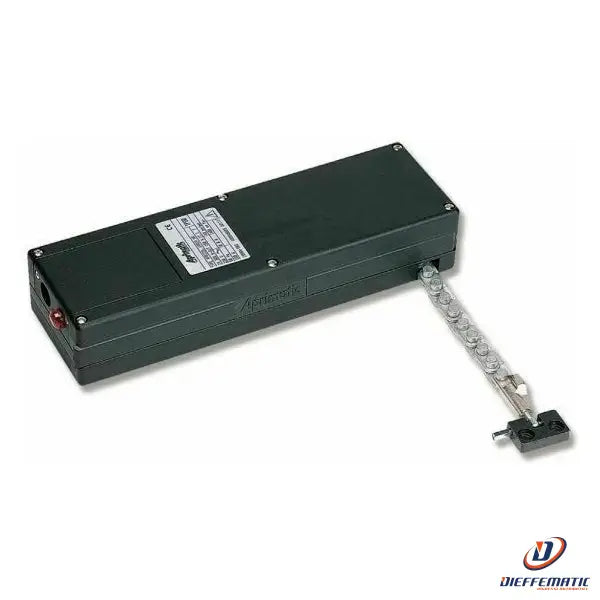

Apricolor VARIA is the electromechanical chain actuator with internal storage in a nylon casing.

Suitable for top-hung and top-hung windows, adjustable stroke from 90 to 400 mm.

230V operation connectable in parallel.

The operating chain is treated against oxidation with a dacromet coating.

Apricolor VARIA was created to be mounted in pairs on a single window with dimensions greater than 1600 mm wide.

The peculiarity of the connection that can be made with Apricolor VARIA consists in the sharing of thermal protection

simultaneously by the two actuators connected in parallel:

if one of the two blocks, the other also stops its motion, avoiding twisting of the frame.

CLICK ON THE LINK FOR THE INSTRUCTION MANUAL:

MANUFACTURER'S INSTRUCTION MANUAL

TECHNICAL DATA
POWER SUPPLY 230 Vac
ABSORBED POWER 150 W
ABSORBED CURRENT 0.8A in AC/1.8 in DC
THRUST FORCE 150 N
TRACTION FORCE 300 N
ADJUSTABLE STROKES from 90 to 400 mm
TRANSLATION SPEED 40 mm/s
FRONT ADJUSTMENT max. 10 mm
PARALLEL CONNECTION YES
THERMAL PROTECTION 100° C (230 V versions only)
4 µF CAPACITOR
BUILT-IN RELAY YES
INDICATOR LIGHT YES
REMOVABLE TERMINAL BLOCK YES
PROTECTION RATING IP20
