Description
Complete Kit forAutomationGate
2 SLIDING DOORS
600 kg
Professional
- Irreversible electromechanical gearmotor for the automation of sliding gates,
with totally metal gears, guarantee of performance and reliability.
- Solid and safe, it features a painted die-cast aluminum body and ABS protective casing.
- It is equipped with an innovative magnetic limit switch system, easy to adjust and which guarantees high positioning repeatability.
- Particularly suitable for use in places where the presence of snow is frequent, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalized key release system allows manual movement of the door in the absence of mains voltage.
- Control equipment with radio receiver, in a special container with aerstop gasket to protect against humidity and insects
- Intelligent: automatic stroke programming, motor torque adjustment and speed slowdown.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

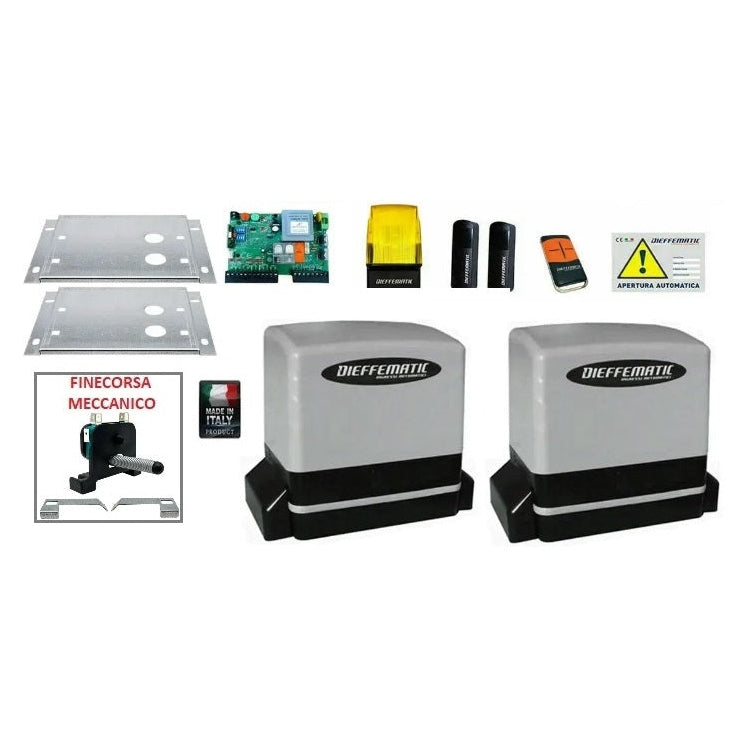

KIT COMPOSITION:
- n° 2 electromechanical gearmotors 600 kg, 220V power supply with key release,
Dimensions H270XW230XD210mm. Weight Kg 8.
- n° 2 Galvanized foundation plate
- n° 1 control unit positioned in the plastic container,with motor force adjustment trimmer and obstacle detector,
slowdown in opening and closing,4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic.
Pedestrian entrance, Courtesy light,Overvoltage protections, input for photocells and safety edges
-----
- n° 1 single-channel radio receiver incorporated in the control unit (433.9 MHz)
- n° 1 Antenna incorporated in the control unit, range 20 meters (433.9 MHz)
- n° 1 4-channel Rolling Code remote control
- n° 1 Pair of wall-mounted photocells
- n° 1 flashing light 230v
- n° 1 warning sign
- n° 1 Installation accessories
- n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
