Description
600Kg 230v
Professional
Mod. KV6 230v
- Irreversible electromechanical gearmotor for the automation of sliding gates,
with full metal gears, a guarantee of performance and reliability.
- Solid and safe, it features a painted die-cast aluminum body and ABS protective casing.
- It is equipped with an innovative magnetic limit switch system, easy to adjust and which guarantees high positioning repeatability.
- Particularly suitable for use in places where the presence of snow is frequent, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalized key release system allows manual movement of the door in the absence of mains voltage.
- Control equipment with radio receiver, in a special container with aerstop gasket to protect against humidity and insects
- Intelligent: automatic travel programming, motor torque adjustment and speed deceleration.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

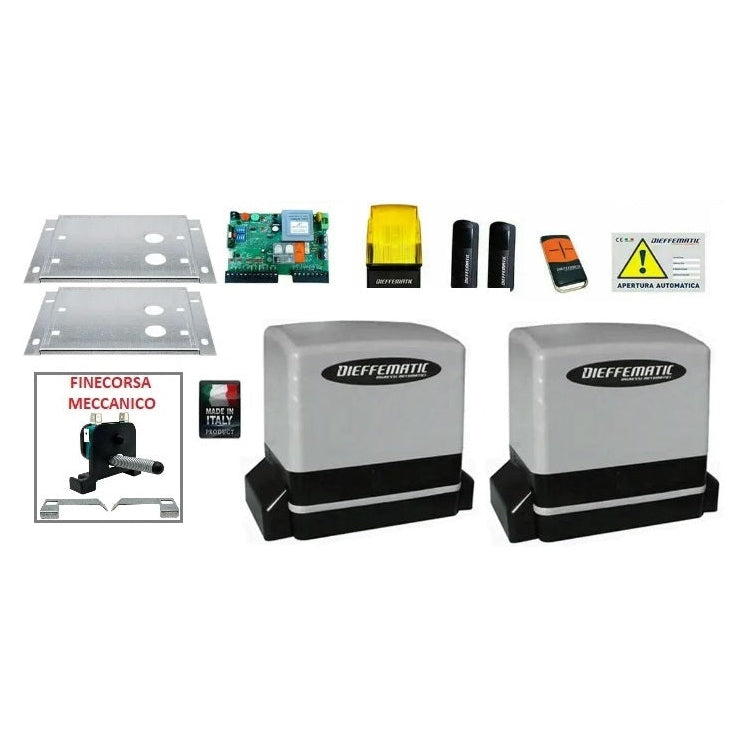

KIT COMPOSITION:
- n° 2 electromechanical gearmotors 600 kg,
220V power supply with key release,
Dimensions H270XW230XD210mm.
Weight 8 kg.
- n° 2 Galvanized foundation plate
n° 1 control unit with watertight box, with motor force and slowdown adjustment trimmer, built-in obstacle detector, slowdown on opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges, Electric lock management, Reversal stroke, Adjustable closing/opening door phase shift, adjustment of re-closing time.
-----
- n° 1 single-channel radio receiver incorporated in the control unit (433.9 MHz)
- n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
- n° 1 4-channel Rolling Code remote control
- n° 1 Pair of wall-mounted photocells
- n° 1 flashing light 230v
- n° 1 warning sign
- n° 1 Installation accessories
- n° 1 Assembly instructions of the mechanical and electronic part in ITALIAN
24 months warranty
