Description

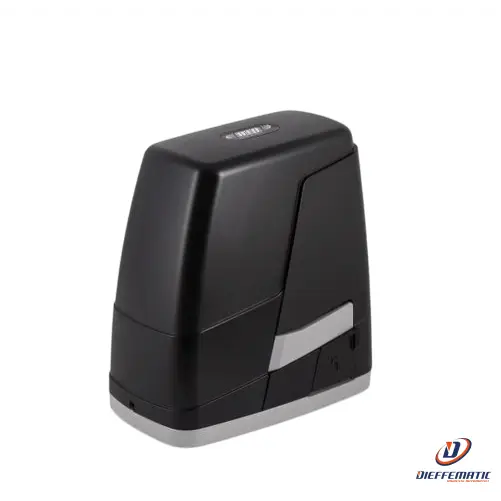

IRREVERSIBLE OPERATOR FOR RESIDENTIAL SLIDING GATES
K500 FAST** with K2007-CRX control panel
• The supplied base plate allows height adjustment and fixing to the ground with expansion screws or by cementing its brackets.
• K500 can be installed on the same fixing plate as the K5 model (discontinued).
• Unlocking with personalized key.
• Sintered steel driving gear.
• Adjustable slowdown when approaching opening and closing.
• FAST version for double speed.
• 433 MHz receiver incorporated into the K2007-CRX control panel compatible with the SUN and MOON 433 remote controls (see page 90).
• All versions with panel can be fitted with the ACG4665 thermal probe to keep the engine warm even at -30°C and are equipped with the edge self-test as required by the EN12453 standard.
• The K500 Wi-Fi version contains the MASTER Wi-Fi card which allows you to connect all the specific accessories WIRELESSLY!
Mod. AA33750
FOR SLIDING GATES HEAVY UP TO 500 kg
Max gate weight: 500 kg
Towing speed: 0.350m/s
Thrust force at constant revolutions: 520 N
Max torque: 12.5 Nm
Power supply: 230V
Absorption: 1.97 A
Module rack: 4
Operator weight: 8 kg
Degree of protection: IP 54
Working temperature: -10 ÷ +55 °C
Recommended daily cycles: 200
Service: 60%
Guaranteed number of consecutive cycles: 25/5m
Dual speed motor - Use M4 metal rack only. It is not applicable to gates with a movable part that closes against a wall or a column. The application where the mobile part closes by sliding to the side of the column is preferable.
24 month warranty
