Description

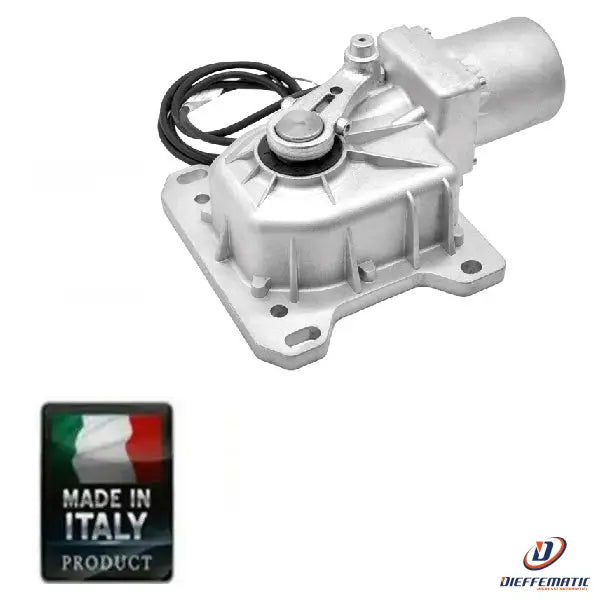

ACTUATOR for SWING gates
WITH BURIED ENGINE
WITH BURIED ENGINE
Professional
**Use for doors up to 2.50 meters and 500kg in weight**
CHROME 24v model
Characteristics:
- Gearmotor made of die-cast aluminum body;
- Gears in steel and cast iron machined from solid;
- Maximum silent operation;
- High performance electric motor;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- 100° opening
- Mechanical release for emergency operation with lever supplied;
- Equipped with a mechanical lock, it does not require an electric lock;
CLICK ON THE LINK FOR THE INSTRUCTION MANUAL:
PRODUCT COMPOSITION:
n° 1 electromechanical actuator, for external uses
Emergency release. No need for electric lock.
Engine rpm 1,400. Power 50 W. Thrust adjustable from 500 to 3000 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 9.0 kg, IP67
n° 1 Installation accessories
n° 1 Assembly instructions of the mechanical and electronic part in ITALIAN
n° 1 electromechanical actuator, for external uses
Emergency release. No need for electric lock.
Engine rpm 1,400. Power 50 W. Thrust adjustable from 500 to 3000 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 9.0 kg, IP67
n° 1 Installation accessories
n° 1 Assembly instructions of the mechanical and electronic part in ITALIAN
24 months warranty
