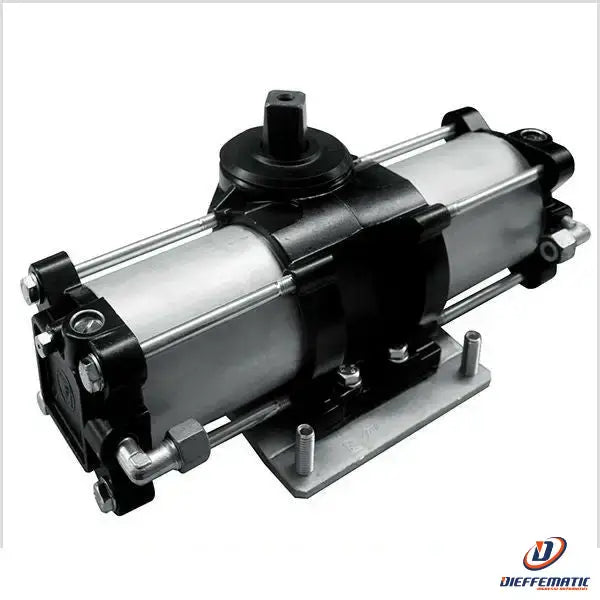

Hydraulic Jack Drive 700 Fadini 712l Automation Automatisms Original

Save £16.00

Model: eb-222334178174
Warranty: 24 months
Supplier: Fadini
Price:
£309.00 £325.00

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 10 working days

Description

Underground hydraulic automation with separate control unit for swing gates.

• Powerful and efficient
separate hydraulic control unit and jack inside its own
formwork.
• Comprehensive range
For installations for collective and industrial use.
Leaf rotation of 110° and 175°.
Reversible without hydraulic block, with bidirectional hydraulic block,
with braking in both directions.
• Reliable
Hydraulic technology and quality of all its internal components
for safe and silent movement. Maximum weight 700 kg per
single gate leaf.
• Safe
Thrust force adjustment with maximum pressure valves.

Drive 700 model

Power supply voltage 230 Vac - 50 Hz
Power consumption 400 W
Current absorbed 2 A
Maximum rated torque 235 Nm
Maximum pressure 30 atm
Opening/closing time ~ 23 s [110°], ~ 28 s [175°]
Operating temperature -20 °C +80 °C (*)
IP 67 protection rating
Type of oil Oil FADINI - cod. 708L
Static weight of the control unit 8 kg
Jack weight with accessories 16 kg
Very intensive use frequency

Rotation: 175°
Braking during opening/closing: 3
Max single door weight (kg): 700

NOTE: All these models are supplied without formwork and ring nut.


24 month warranty
