External Siren Via Radio Frequency 868 Mhz Securvera Sv-svrsalerub

External Siren Via Radio Frequency 868 MHz Bidirectional Anti-Collision Anti Jamming UNISAT Codes Magnetodynamic Horn 120 dB flashing indicator LED status Anti-foam Alarm duration 3.5 minutes ABS container IP34 - SV-SVRSALERUB

Mod. SV-SVRSALERUB

SKU: SV-SVRSALERUB

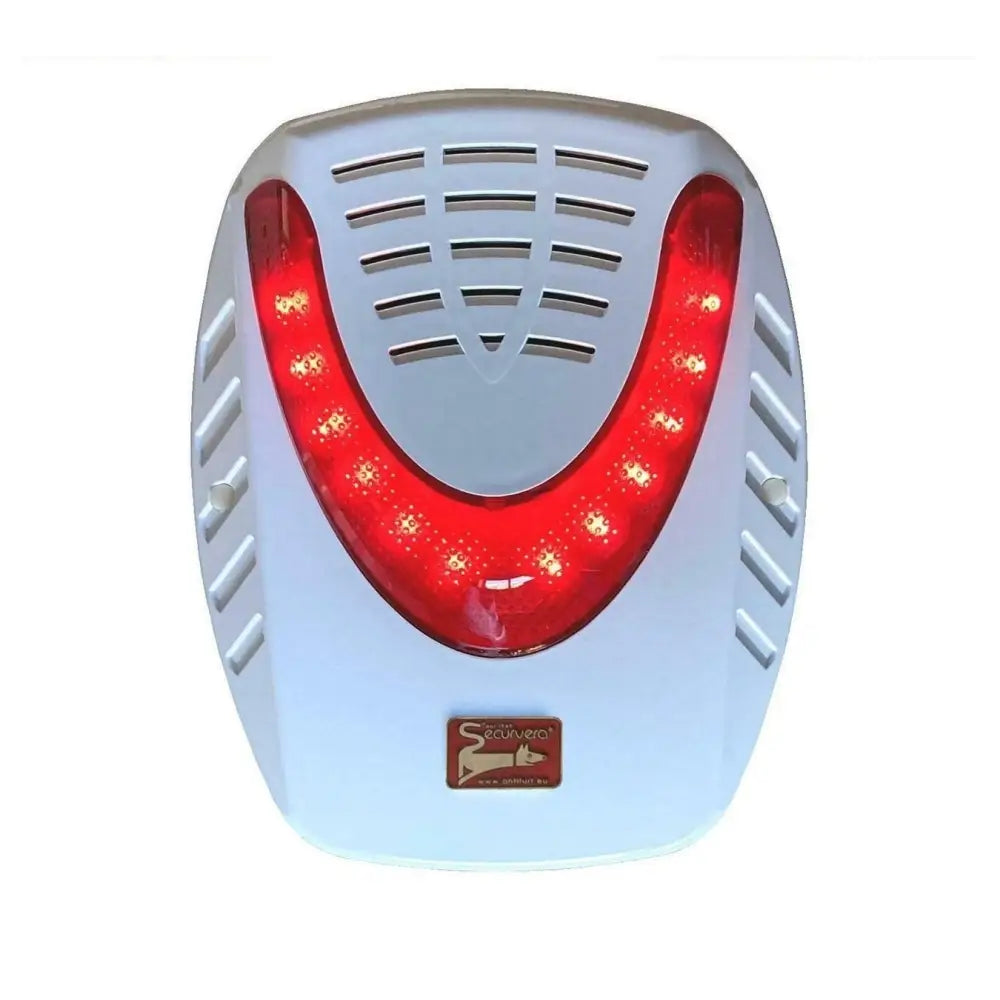

SV-SVR Flashing siren with external status signaling via radio. Working frequency 868 MHz. Radio range over 300 meters in free air. Securvera coding unique Securvera codes. Bidirectional "UNISAT 2" system; anti-collision anti-jamming. Magnetodynamic loudspeaker (horn). Impedance 4 ohm sound pressure. Sound pressure 120 dB at 1m. 2 tone acoustic output. Frequency ISM band 868, 869.5 Mhz GFSK. Tone frequency 1724 - 2475 Hz. Flash/Siren time base 1.7 Hz. Flash lamp and LED status. First closing installation time 20". Alarm cycle reset time 20". Max alarm duration 3.5 minutes. Tear-proof sabotage protection lid opening tamper. Antifoam detection via optical sensor. Protected against polarity inversions. Power supply: 7.5 V 18 Ah alkaline battery. Consumption: 25 uA in standby; in transmission 90 mA (for 20 ms duration); With active horn 1.87 A peak. Expected battery life 2 years (normal operation 1 alarm every 7 days). ABS container with double shell. Degree of protection: IP34. Operating temperature: -10C° to +40C°. Dimensions H250XL190XP110 mm. Weight with battery 2.3 kg. Assembled product selected in the Securvera Roma factory. Guaranteed by law for 24 months against defects and manufacturing defects. It complies with European use and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08 -2002), EN 60730-1: 2003 CEE89/336 and 93/686 DL 04/12/1992 n. 47. Radio Equipment 2014/53/EU. Electromagnetic Compatibility 2014/30/UEContacts or Equipment


LIST OF COMPONENT(S) SUPPLIED IN THIS ADVERTISEMENT FOR RADIO SECURITY SYSTEM WITH REMOTE MANAGEMENT:
01 SV-SVR Siren Flashing External Radio Fr. 868 MHz Bidirectional Anti Jamming C.Unisat 110 dB Power supply. 7.5V
01 SV-GAR 24 Month Warranty Certificate. Lifetime Against Factory Defects: Qualified Installation Ministerial Decree 37/2008
01 SV-IST Detailed Assembly Instructions to be Respected: Fixings, Measurements and Connections Reported in the Manual


Securvera Registered Trademark 663069: Securvera since 1969 Pioneer Leader in the Security sector
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Unisat Central Alarm Security Home Automation HiFi Radio Wired 868 KHz LAN
Italian Manufacturer CE Products: Sbeco Fire Alarm Automatic Overhead Gate Automation
Electrical Stress Protection: Anti Jamming, Sabotage and Collision Control, LAN Polarity Reversal
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions Tax Accounting Via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Programming Manual for Useful Accessories Functions Carefully
Original Italian product: Always save because the purchase is a lasting investment
Very important warning: We do not ship to the smaller islands and abroad unless collected from our office
Article Code Model Type: SV-SVRSALERUB Wireless External Flashing Siren 868 MHz Unisat


CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL

24 month warranty
