Description

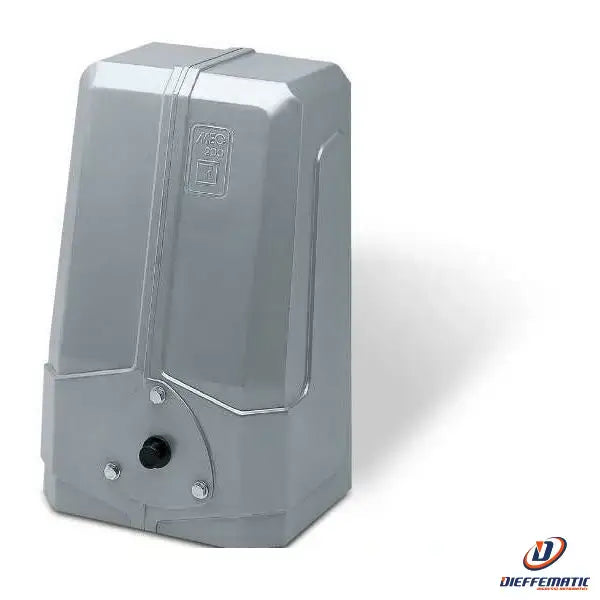

Electromechanical automation for sliding gates
• Strong
gearmotor with bronze-steel coupling in an oil bath
supported by very high quality and reliable ball bearings. Different
types of electric motors, also available with ventilated motor with
electric brake.
• Reliable
aluminum structure and hood for a total guarantee over time.
• Safe
force adjustment with mechanical clutch.
• Robust and compact
die-cast aluminum base.
• Versatile
full range of models. Horizontal and vertical version.
Suitable for intensive and industrial use systems.
The electronic programmer can be housed inside the
MEC 200 or with its own outdoor polycarbonate container.
• Tested and certified
CE marking with ITT PDC type tests No. 2388-2008.
MEC 200 model
Horizontal/Vertical: Vertical
Version: Three-phase
Power (kW/CV): 1.1 / 1.5
Ventilated engine with electric brake: No
Built-in Programmer: None
Max weight (kg): 2,000
Power supply voltage: 230/400 Vac - 50 Hz
Power absorbed: 1,500 W
Current absorbed: 5.1/3 A
Power output: 1.1 kW
Engine rotation speed: 1,380 rpm
Capacitor: 30 µF
Reducer nominal torque: 110 Nm
Sliding speed: 10 m/min
Gear ratio: 1/32
Operating temperature: -25 °C +80 °C
Limit switch: mechanical
Degree of protection: IP 55
Type of lubrication: Oil FADINI - cod. 706L
Motor weight: 25.5 kg (horiz) - 25 kg (vert)
Frequency of use: very intensive
24 month warranty
