Description
Complete Kit for Gate Automation
with TWO HINGED DOORS
HYDRAULIC actuator
FOR DOORS UP TO 4 METERS AND 600 KG IN WEIGHT!
Professional
Mod. PH1 390 HYDRAULIC
Linear hydraulic actuator for condominium use, entirely metal structure, stainless steel stem.
Refined mechanics: operation using oil with internal lubrication of all mechanical components
Safe: thanks to the anti-crushing safety with the bypass valves for calibrating the maximum thrust.
Ball joint for millimetric adjustment.
Convenient release with triangular key
The actuator is built for leaves that do not exceed 600 kg in weight and 4 meters in length
The actuator keeps the lock in closing and opening without the need for an electric lock for doors, convenient release with a triangular key located on the motor unit.
Control unit with built-in receiver for the control of 1/2 doors.
Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.
Slowdowns on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the travel of the leaves.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT COMPOSITION:
n° 2 Hydraulic actuator for intensive condominium use, IRREVERSIBLE. Extruded aluminum structure, high-performance engine. Emergency release. Does not require an electric lock. Motor power 0.25 HP, Temperature range from -10° to 60°, Max pressure 50 bar, Power supply 230 V. 50 Hz. Weight 14 Kg
n° 1 control unit with watertight box, with motor force and slowdown adjustment trimmer, built-in obstacle detector, slowdown on opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges, Electric lock management, Reversal stroke, Adjustable closing/opening door phase shift, adjustment of re-closing time.
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 40 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells

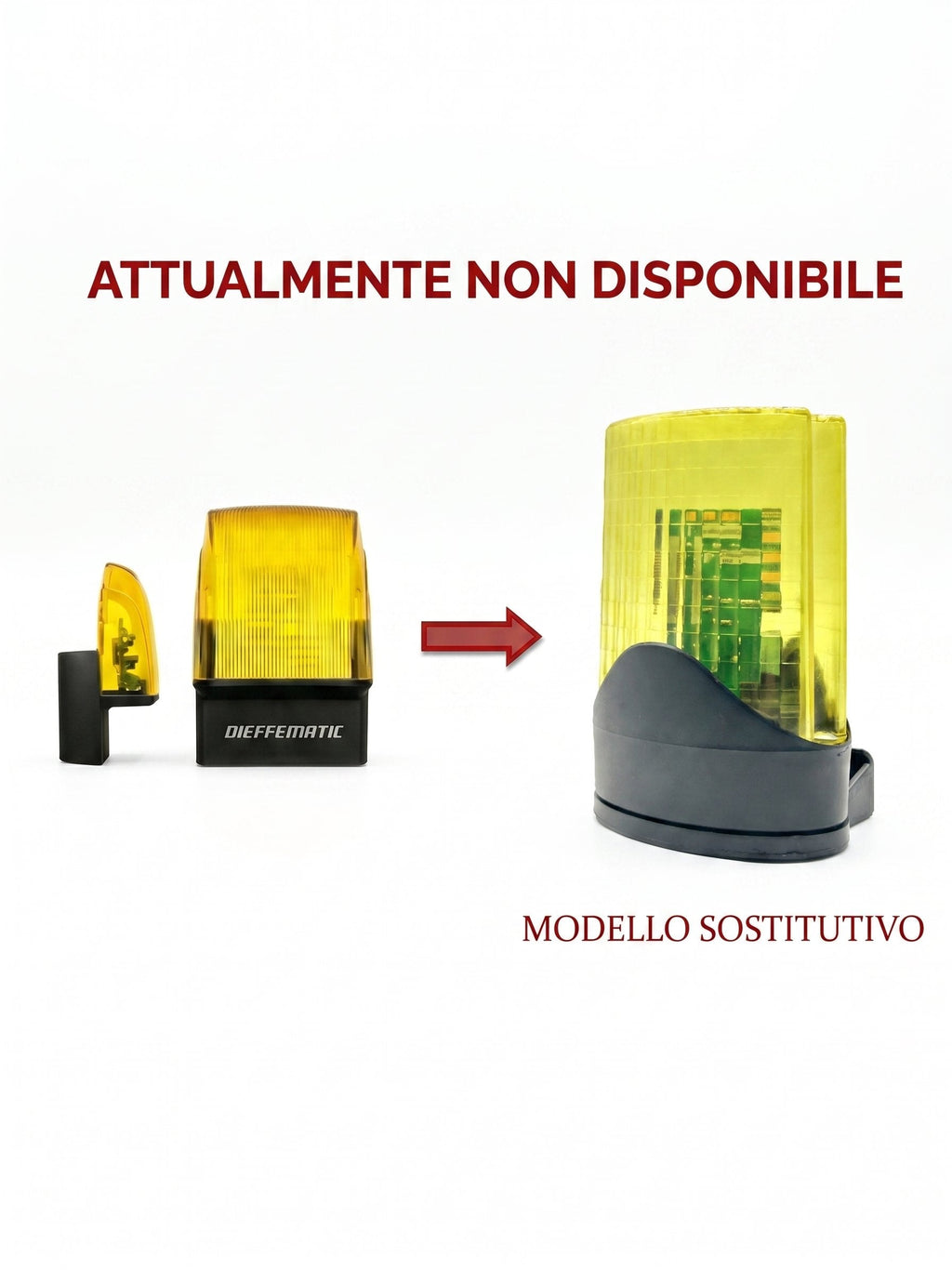

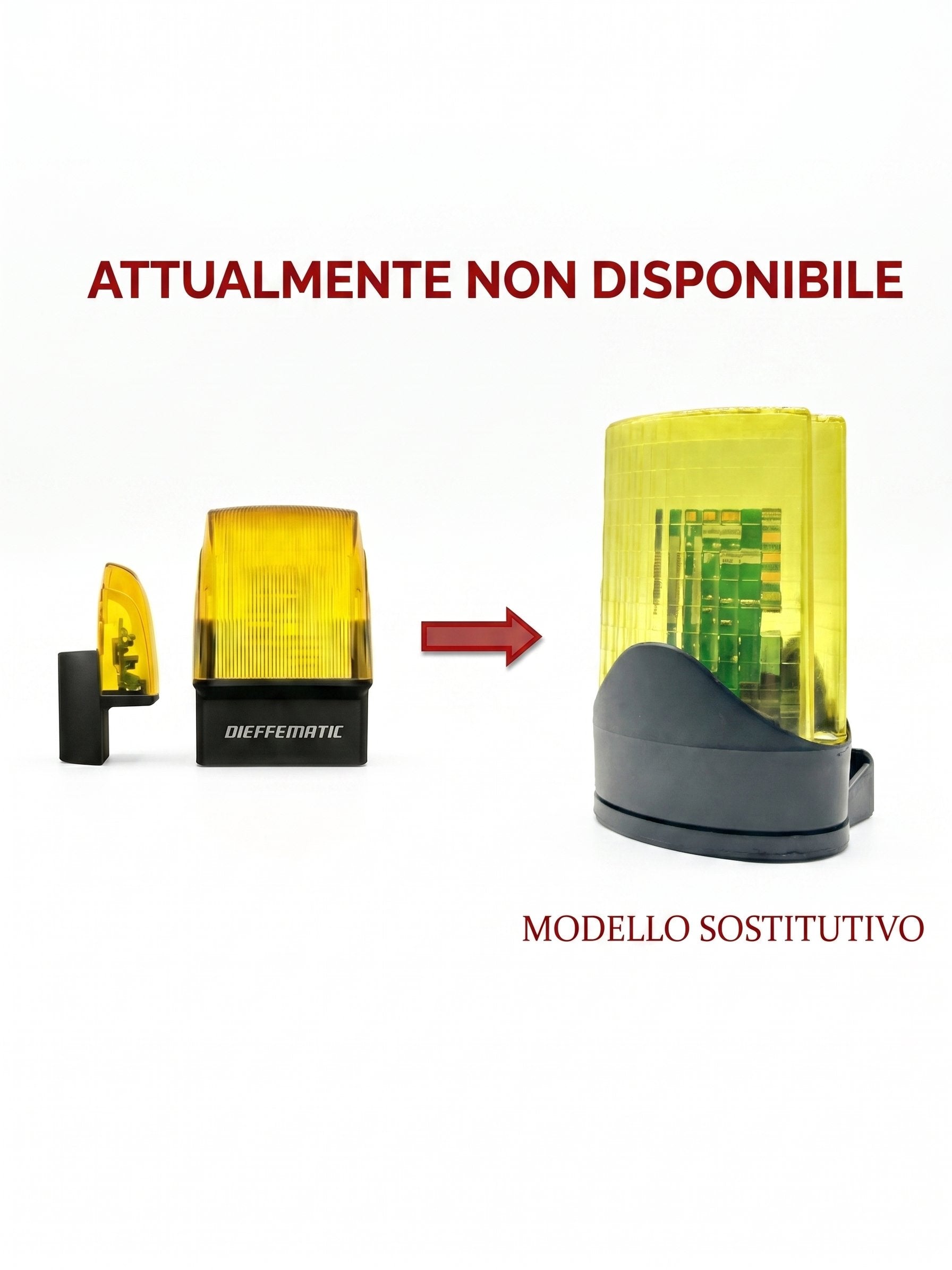

n° 1 230v flashing light
n° 1 Warning sign
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
