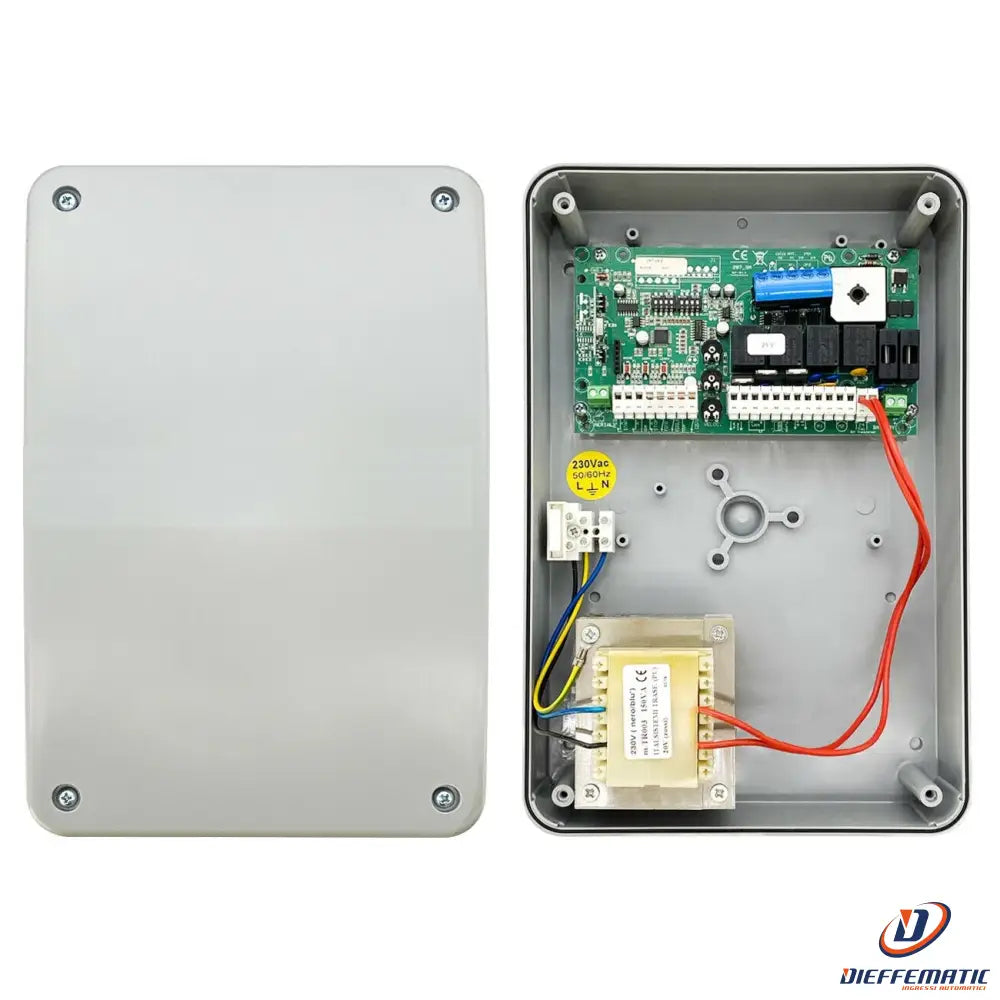

Command Board For Swing Gate Automation 24v Fits Serai Cr/41/24

Professional

with Box and Transformer

UNIVERSAL

SUITABLE FOR ALL AUTOMATIONS

1. GENERAL INFORMATION

The self-learning universal control unit was designed for the automation of 1 or 2 access

24V motors and is equipped with an innovative self-learning procedure for quick installation and

four trimmers for fine adjustment of the main parameters; strength, pause time, control sensitivity

obstacle and lag in closing between the two motors.

CLICK ON THE LINK FOR THE INSTRUCTION MANUAL:

MANUFACTURER'S INSTRUCTION MANUAL

Are available:

- rapid self-learning programming, in which the control unit automatically carries out the manoeuvre

learning of the maneuver times and sets the start of the slowdown both in opening and closing at 90%

- professional programming in which the installer can determine the instant the slowdown begins

of the leaves, the enabling of pedestrian opening via radio, the intervention mode of the safety devices.

2. MAIN FEATURES

. Command and control of automated accesses with 1 or 2 24V motors (max 1/2 Hp)

. Simplified and professional self-learning procedure for the acquisition: of maneuver times and

slowdown, and the presence of safety devices.

Motor force adjustable via trimmer from 50-100%.

Customizable partial (pedestrian) opening

Dwell time adjustable via trimmer from 0 to 60 seconds.

Obstacle control intervention time adjustable via trimmer between 0.1 and 3.0 seconds.

Closing motor phase shift adjustable via trimmer between 3 and 30 seconds

. 12V 15W electric lock management

. Courtesy light management

. Built-in 433MHz receiver

. 255 memorized radio codes

. On-board reprogrammable Flash microprocessor via serial interface.

. Complies with the relevant European Directives: R&TTE 99/05/CE

3. TECHNICAL CHARACTERISTICS

Central power supply: 230VAC

Engine output: 2 x 1/2Hp

Motor current: Max 8 Ampere

Accessory power supply: 24 VDC - 750 mA

Operating temperature: -20°C / + 55 °C

Programming parameters: stored in EE-PROM

Function manager: microprocessor with watch-dog

24 month warranty
