Description
Complete Kit for Automation
Sliding gate
1000 kg
IN OIL BATH
ideal for the automation of gates with intensive use.
Professional
Mod. KV10 230v
Electromechanical gearmotor for external installation with all-metal gears,
guarantee of performance and reliability.
Pre-wired and protected electronic control unit.
simple, reliable and compact control unit with built-in radio receiver capable of containing up to 1000 remote controls.
Sophisticated control unit with extensive motion adjustment possibilities. Built-in radio receiver.
Reliable: thanks to the all-metal gears.
Base entirely in die-cast aluminium.
ABS cover with anti-UV additives.
Unlocking with personalized key: convenient, intuitive and safe.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT COMPOSITION:
n° 1 1000 kg electromechanical gearmotor (with built-in electronic equipment)
220V power supply with key release, Dimensions H257XL290XP135 mm.
Speed 12 m/min (UNI 8612 standards), weight 13 kg
n° 1 Galvanized foundation plate
n° 1 control unit positioned in the engine crankcase, with trimmer for regulating the engine force and obstacle detector,
slowdown in opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic.
Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells

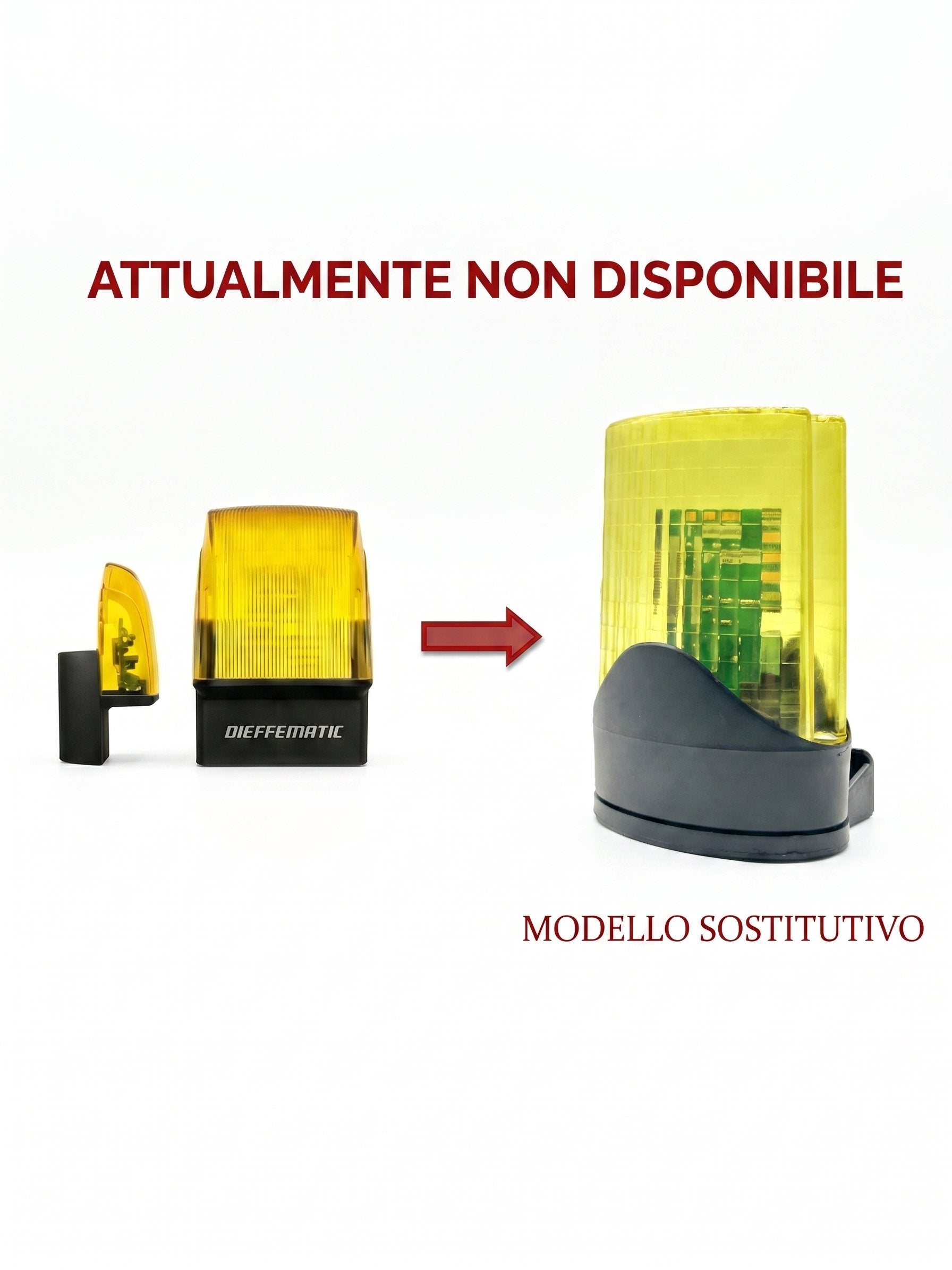

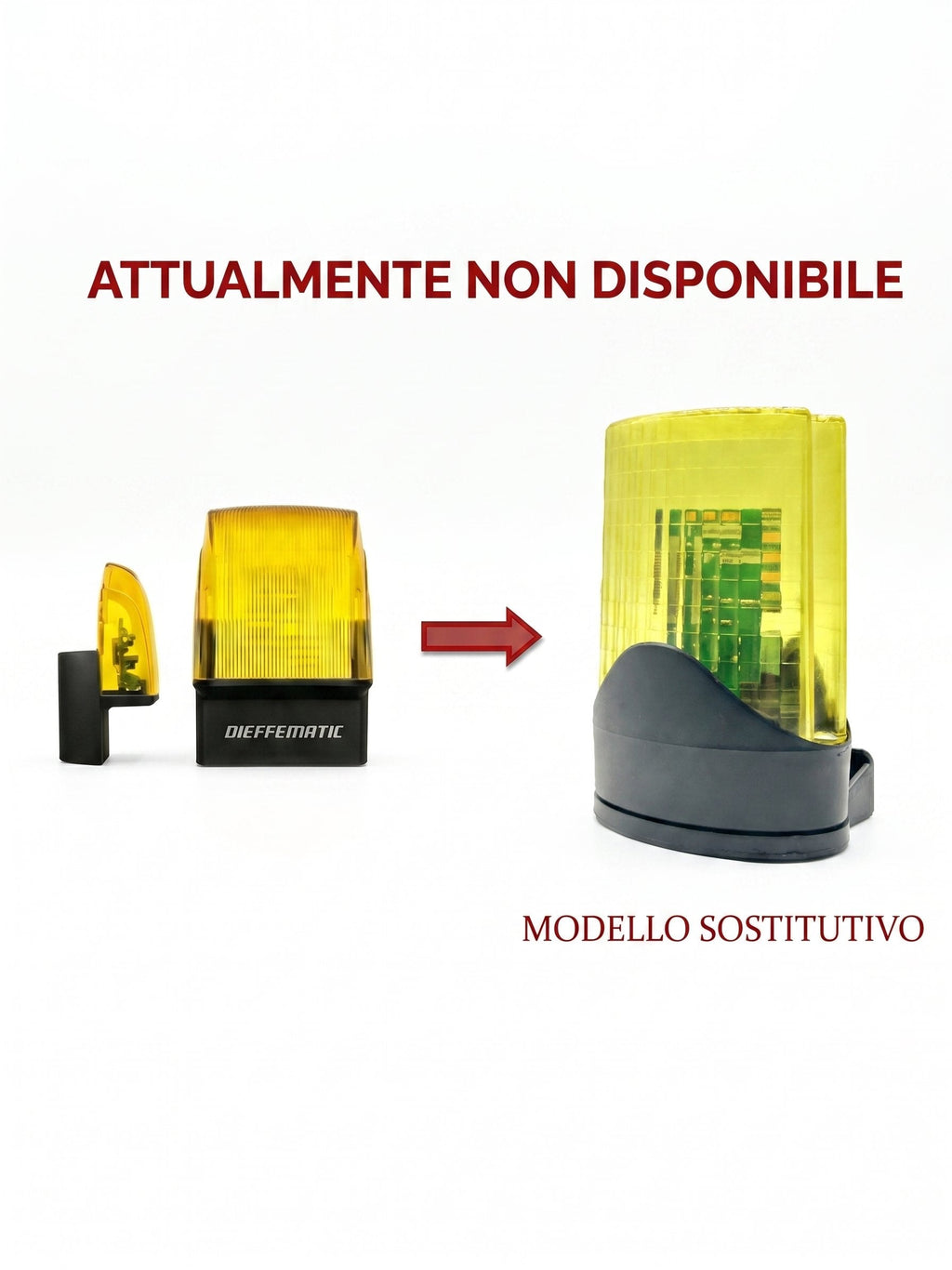

n° 1 230v LED flashing light
n° 1 Warning sign
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
