Description
Electromechanical automation for sectional, folding and industrial doors.
• Effective
responds to the needs of the business and work world.
• Robust
oil bath gearbox and gears entirely in bronze.
Force adjustment with mechanical clutch.
Also available with ventilated motor with electric brake.
Version with built-in limit switch (optional).
• Safe
remote manual unlocking with personalized key.

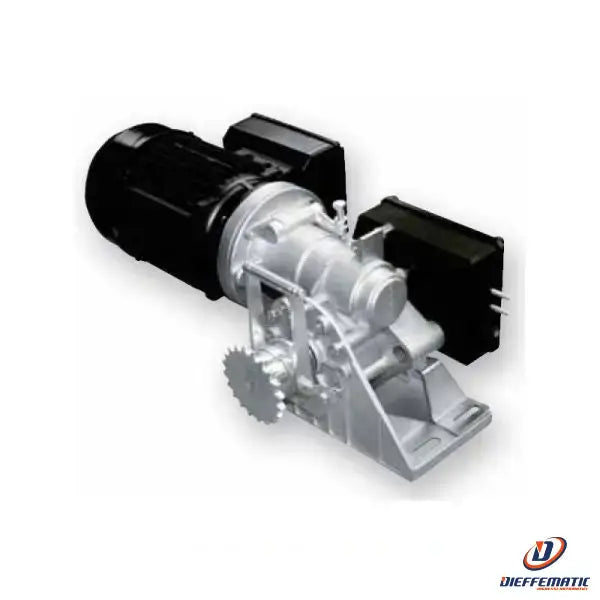

Mod. Mec 200 LB
Power (kW/HP): 0.73 / 1.0
Ventilated engine with electric brake: No
Door surface area (m²): 50
Power supply voltage: 230/400 Vac - 50 Hz
Power absorbed: 1,030 W
Current absorbed: 3.7/2.2 A
Power output: 0.73 kW
Reducer nominal torque: 80 Nm
Sliding speed: 9.6 m/min - Z20 1/2"
Gear ratio: 1/32
Operating temperature: -20 °C +80 °C
Limit switch: mechanical
Degree of protection: IP 55
Type of lubrication: Oil FADINI - cod. 706L
Engine weight: 21 kg
Door surface: 50 m2
Frequency of use: intensive
NOTE: it is possible to apply the built-in limit switch (code 2059L) for entrance doors on each version of the MEC 200 LB gearmotor.
maximum length 8 m.
NOTE: each automatic mechanism is supplied complete with built-in clutch, cable release, 1/2" Z20 pinion. Without limit switch.
24 month warranty
