Description

PRIMATIC OPEN

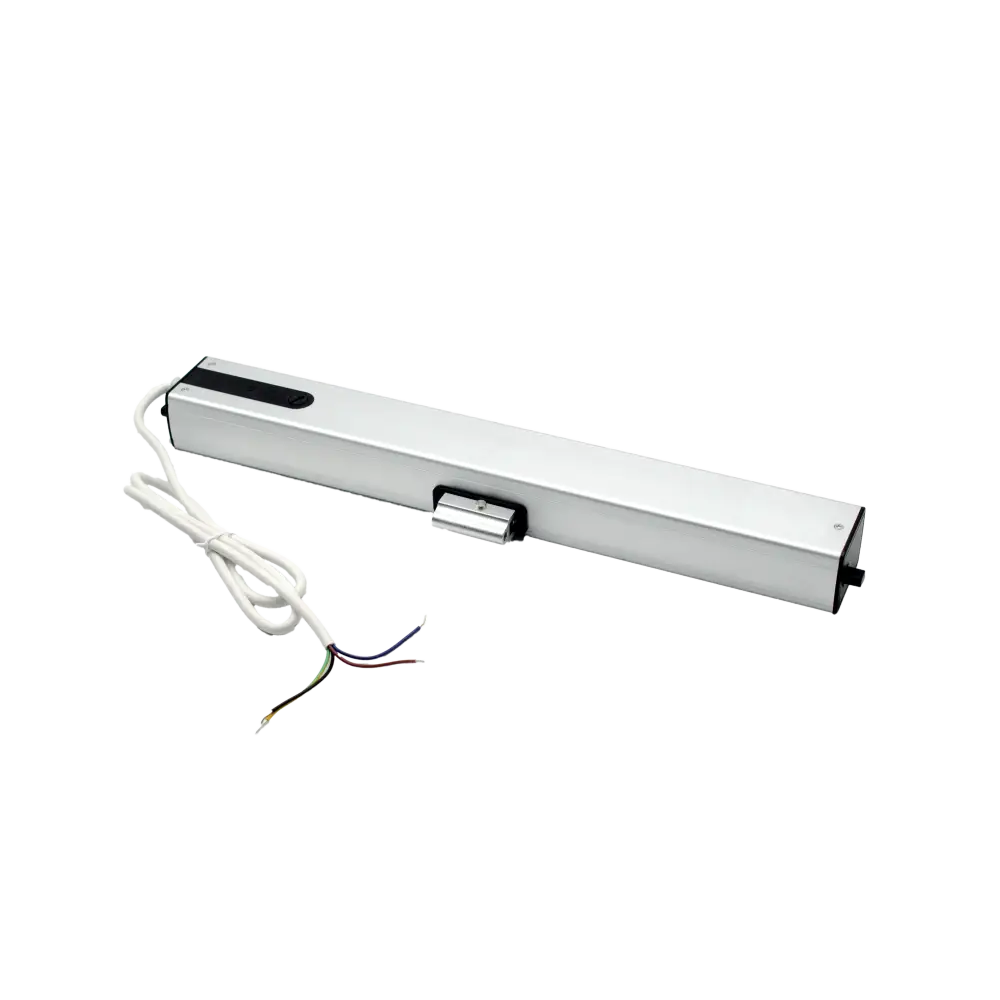

Electromechanical actuator for doors and windows

WI-MATIC ATC300E

Electromechanical actuator for doors and windows with double link chain for protruding applications.

100-240VAC power input, suitable for the various demands of all countries.

Tilting brackets for using long strokes even on small-sized windows.

Easily adjustable stroke from 100 to 400 mm

Double link chain in special alloy to guarantee maximum strength and resistance to oxidation.

Silent operation.

The small size and compact shape make this product easily integrated into the thickness and design of any type of frame.

Maximum resistance over time thanks to the satin-finish aluminum body.

TECHNICAL DATA
POWER SUPPLY 100-240 Vac 50/60 Hz
ABSORBED CURRENT 0.15 A
ABSORBED POWER 28 W
TRACTION/PUSH FORCE 250 N / 250 N
TRANSLATION SPEED 10 mm/s
ADJUSTABLE STROKE 100-400 mm
OPERATING TEMPERATURE -20°+60°
ACTUATOR DIMENSIONS (LxHxP) 460 x 42 x 56 mm
WINDOW WIDTH 1600 mm MAX
PROTECTION RATING IP42
PARALLEL CONNECTION YES, with one motor for each frame

24 months warranty
