Description

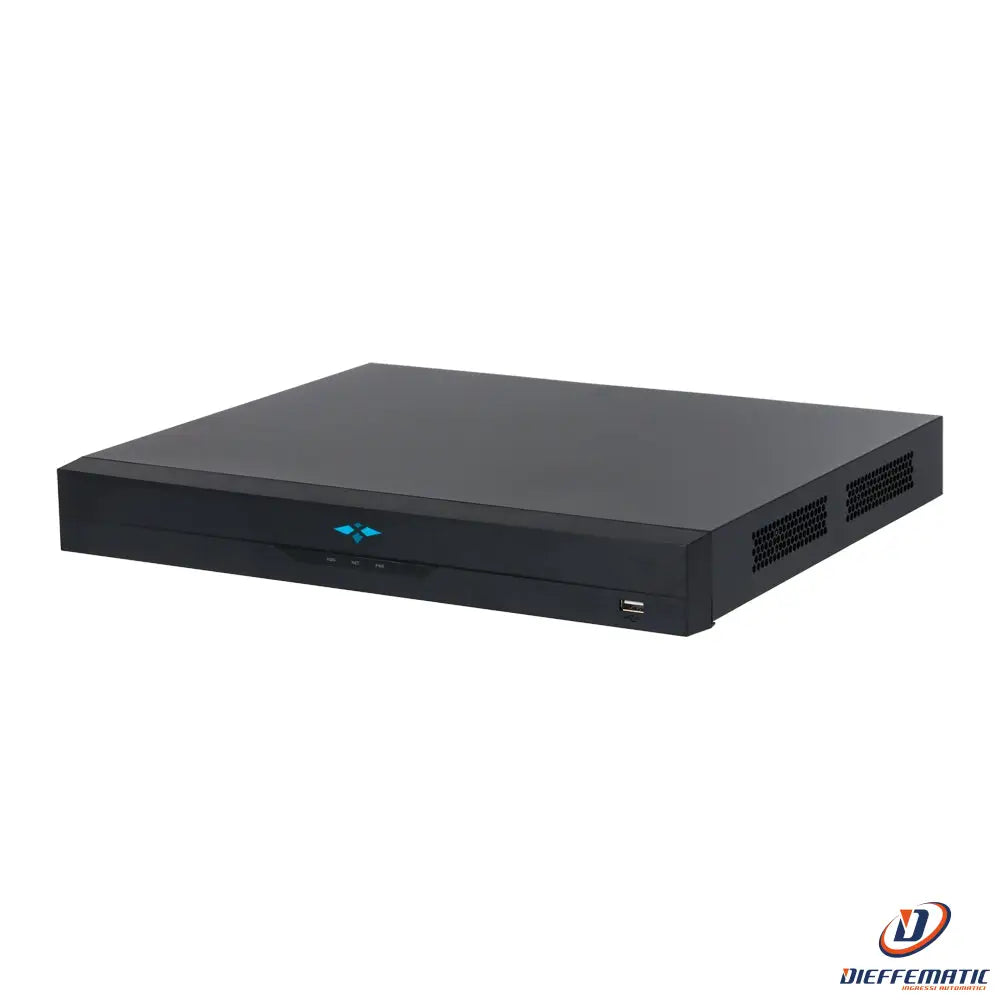

5-in-1 DVR
Mod. XS-XVR6232S-4KL-6AI
SKU: XS-XVR6232S-4KL-6AI
• X-Security 5-in-1 DVR
• 32 CH HDTVI/HDCVI/AHD/CVBS (4K) + 32 IP (8MP)
• Audio over coaxial cable
• 2 SATA ports, up to 16TB
• 6 CH facial recognition
• 32 CH person and vehicle recognition
DESCRIPTION:
• X-Security
• 5-in-1 DVR
• 32 CH HDTVI/HDCVI/AHD/CVBS video / 32+32 IP / 32 CH audio
• Smart H.265+/H.265, Smart /H.264+/H.264
• Resolution: 4K (7FPS) or 6MP (10FPS) or 5MP (12FPS) or 4MP (25FPS) or 4K-N, 4MP/3MP (15FPS), 4M-N/1080P/720P/960H/D1/CIF (25/30FPS)
• PTZ control (RS485)
• Audio over coaxial cable
• Full HD HDMI output, VGA
• 6 CH face comparison
• Person and vehicle recognition (available for 32 coaxial video channels)
• Mouse
• 2 USB ports
• Space for 2 HDDs
• Compact dimensions
SPECIFICATIONS:
Brand
X-Security
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
32 BNC channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration
Up to 64 IP channels (8MP), replacing all BNC channels
Video output
1 HDMI, 1 VGA
Video/audio compression
Smart H.265+/H.265, Smart /H.264+/H.264
Display resolution
HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
Total bandwidth
128 Mbps
Encoding
All channels: 4K(1 fps-7 fps); 6MP(1 fps-10 fps); 5MP(1 fps-12 fps); 4K-N, 4MP/3MP(1 fps-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps-25/30 fps)
Dual-stream encoding
960H (1 fps-15 fps); D1/CIF(1 fps-25/30 fps)
Multifunction
Pentaplex: Live view, recording, playback, backup and remote access
Audio inputs
32 BNC, 1 RCA channel
Audio outputs
1 RCA channel
Two-way audio
Using the audio input/output
Alarms
No
Video analytics
IVS: Line crossing | Area intrusion | Abandoned object | Face detection
IP mode, facial recognition and IVS cannot be enabled simultaneously
Facial recognition
Up to 6 analog channels for live face comparison
Smart motion detection
Up to 32 channels capable of classifying targets as people or vehicles
Recording method
Manual, scheduled, motion detection, alarm
Backup
USB/Network
Internal storage
2 SATA HDDs up to 16 TB (not included)
Communication
RS485 (PTZ) / 2 x USB (mouse and backup) / RJ45 10/100 (Ethernet)
Remote access
Browser (ActiveX), smartphone app or PSS software
Power supply
DC 12V / 5A
Dimensions / Weight
53 (W) x 375 (L) x 334.4 (H) mm / 2.50 kg
CONTENTS:
• X-Security 5-in-1 DVR
• Mouse
• 12VDC power supply
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
