Shipping
Shipping in 5-10 business days
Description
5-in-1 DVR
Mod. XS-XVR6116AS-4KL-2AI
SKU: XS-XVR6116AS-4KL-2AI

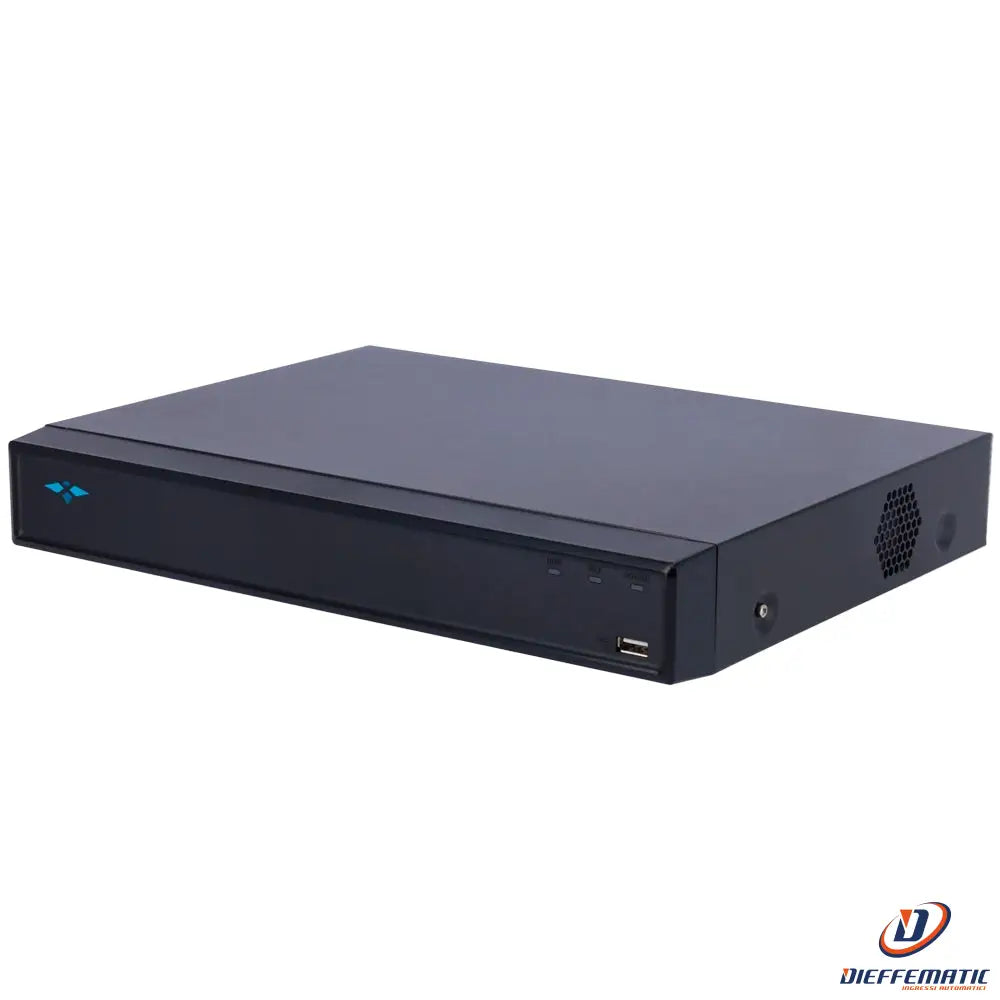

• X-Security 5-in-1 DVR
• 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8MP)
• Alarms | Audio over coaxial cable
• 4K resolution (7FPS)
• 2 CH facial recognition
• 8 CH people and vehicle recognition
DESCRIPTION:
• X-Security
• 5-in-1 XVR
• 16 CH video HDTVI/HDCVI/AHD/CVBS / 16+16 IP / 16 CH audio
• H.265+/H.265/H.264+/H.264
• Resolution: 4K (7FPS), 6Mpx (10FPS), 5Mpx (12FPS), 4K-N, 4MP/3MP (15FPS), or 4M-N/1080P/720P/960H/D1/CIF (25/30FPS)
• PTZ control (RS485/Coaxial)
• Audio over coaxial cable
• Alarms
• Full HD HDMI, VGA and CVBS output
• 2-channel face comparison
• People and vehicle recognition (available for 8 coaxial video channels)
• Mouse
• 2 USB ports
• Space for 1 HDD
SPECIFICATIONS:
Brand
X-Security
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration
Up to 32 IP channels (8MP), replacing all BNC channels
Video output
1 HDMI Full HD, 1 VGA
Video/audio compression
H.265+/H.265/H.264+/H.264
Display resolution
HDMI: 4K, 1920x1080, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
Total bandwidth
128 Mbps
Encoding
All channels: 4K (1 fps-7 fps); 6MP (1 fps-10 fps); 5MP (1 fps-12 fps); 4K-N, 4MP/3MP (1 fps-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps-25/30 fps)
Dual-stream encoding
960H (1 fps-15 fps); D1/CIF (1 fps-25/30 fps)
Multifunction
Pentaplex: Live view, recording, playback, backup and remote access
Audio inputs
16 BNC, 8 RCA channels
Audio outputs
1 RCA channel
Two-way audio
Using the audio input/output
Alarms
8 inputs / 3 relays
Video analytics
IVS: Line crossing | Area intrusion | Abandoned object | Face detection
IP mode, facial recognition and IVS cannot be enabled simultaneously
Facial recognition
Up to 2 analog channels for live face comparison
Intelligent motion detection
Up to 8 channels capable of classifying targets as people or vehicles
Recording method
Manual, scheduled, motion detection, alarm
Backup
USB/Network
Internal storage
1 x 3.5" SATA HDD up to 16 TB (not included)
Communication
RS485 (PTZ) / 2 x USB (mouse and backup) / RJ45 10/100 (Ethernet)
Remote access
Browser (ActiveX), smartphone app or PSS software
Power supply
DC 12V / 2A
Dimensions / Weight
55 (W) x 325 (L) x 256.6 (H) mm / 1.2 kg
CONTENTS:
• X-Security 5-in-1 DVR
• Mouse
• 12 VDC power supply
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
24-month warranty
