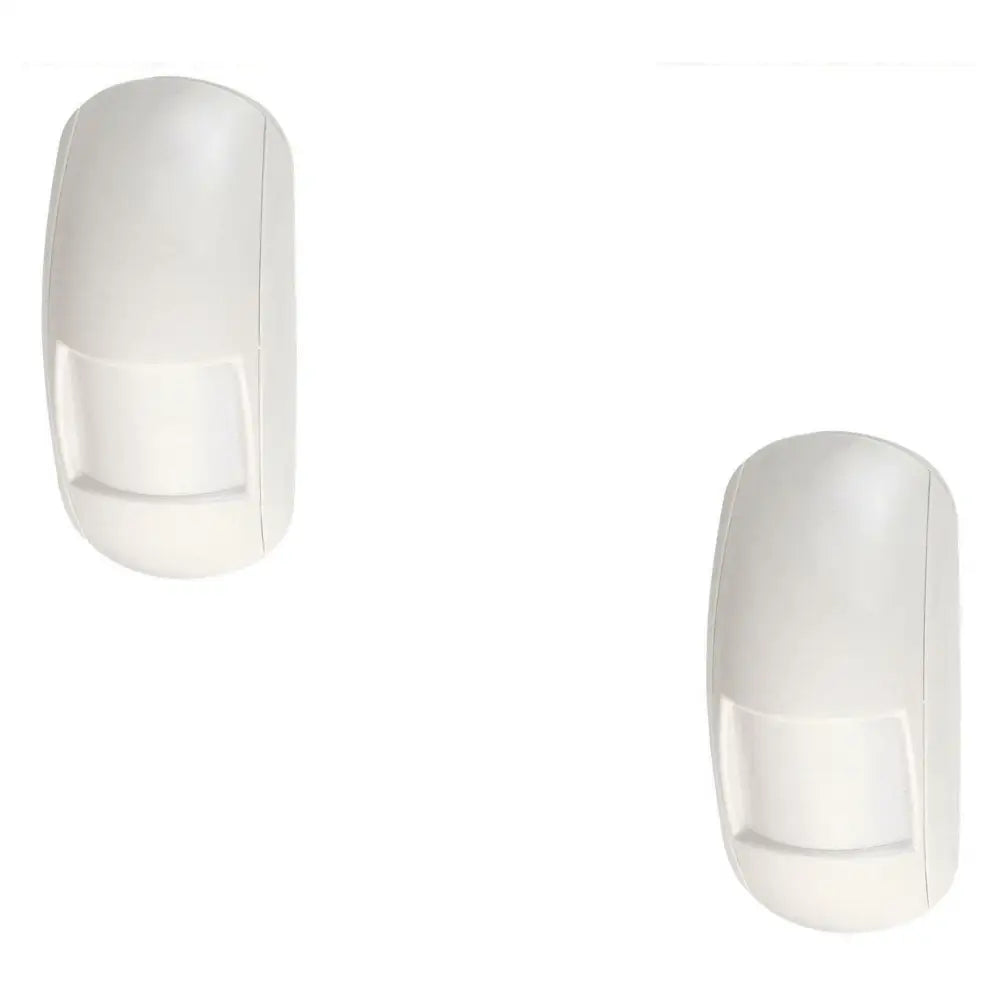

Wireless Infrared Detector 15 Meters Wide Angle Securvera Sv-sir2igwcud

Wireless Infrared Detector, 15-Meter Wide-Angle, Indoor, 2 Pieces, 868 MHz Bidirectional Frequency, UNISAT Coding, Anti-Jamming, Look-Down, Volumetric Sensor - SV-SIR2IGWCUD

Model SV-SIR2IGWCUD

SKU: SV-SIR2IGWCUD

SV-SIR wide-angle wireless infrared detector. 15-meter coverage, with a special six-level, 102-facet lens. Microprocessor-controlled "look-down" detection. This is an indoor passive infrared volumetric detector. Its technology is based on digital signal analysis and a pyroelectric element that detects infrared radiation using innovative signal filtering. It detects an intruder's movement and body mass, and counts programmed movements. The incremental temperature compensation system allows the detector to adapt to the specific environmental conditions in which it is installed. One-minute reset time between alarms. 70 dB buzzer at 10 cm. Tamper protection against removal and opening, even when switched off. Bidirectional transmission, anti-collision, anti-jamming. Operating frequency: 868 MHz. Securvera "UNISAT2" coding. Wireless range of over 300 meters in open air. Powered by a lithium battery (included; expected life 24 months), 3.6 V. Standby current: 25 µA. IP50 protection rating. ABS housing. Dimensions L70XH125XP50 mm. Weight: 84 g. Product assembled and inspected at the Securvera facility in Rome. Guaranteed for 24 months against manufacturing defects and faults, as required by law. Complies with the intended use and European directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 n. 47. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU


LIST OF COMPONENTS SUPPLIED WITH THIS LISTING FOR A REMOTE-MANAGED WIRELESS SECURITY SYSTEM:
02 SV-SIR Wide-Angle Wireless Infrared Detector, 868 MHz, Bidirectional, Indoor, 15 m, Anti-Jamming, Unisat2 Code
01 SV-GAR 24-Month Warranty Certificate. Lifetime Coverage Against Manufacturing Defects: Qualified Installation, Ministerial Decree 37/2008
01 SV-IST Detailed Installation Instructions to Follow: Mounting, Measurements and Connections Are Provided in the Manual


Securvera Registered Trademark 663069: Since 1969, Securvera has been a pioneer and leader in the security sector
Installation Instructions or Manual: See Below for "CLICK TO GET THE GUIDE OR MANUAL"
Use, Application and Functions: Unisat Alarm Control Panel, Home Security, HiFi, Wireless and Wired, 868 KHz LAN
Italian Manufacturer of CE Products: Sbeco Fire Alarm, Gate Automation, Automatic Up-and-Over Doors
Electrical Protection Against Stress: Anti-Jamming, Tamper and Collision Protection, Reverse Polarity, LAN
Country of Origin and Manufacture: Made in Italy at the Securvera factory and carefully inspected
Payment Methods: State Tax Deductions, Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Statutory Period: Product guaranteed by Securvera for life against manufacturing defects and faults
Compatibility with Other Brands: Alarm Systems of Any Make and Type, Security Door Openings
Installation Instruction Manual: Read the programming, functions and useful accessories manual carefully
Original Italian Product: Always save because your purchase is a lasting investment
Important Notice: We do not ship to smaller islands or abroad, except for collection from our premises
Item Code, Model, Type: SV-SIR2IGWCUD Wireless Infrared Sensor, 868 MHz Frequency, Unisat 2


CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL

24-month warranty
