Description
Complete Gate Automation Kit
for DOUBLE SWING leaves
Professional
With mechanical limit switches for opening and closing
Mod. BHE 400mm 230v
**For leaves up to 2.50 m and 200 kg**
Electromechanical linear actuator for condominium use, all-metal construction, stainless steel rod.
Once correctly installed, BHE automation systems require virtually no maintenance. Installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 200 kg and measuring no more than 2.50 metres in length. Its aluminium body and bronze gear mechanism ensure a long service life.
The actuator keeps the gate locked when open and closed without requiring an electric lock for the leaves, and features a convenient release with a triangular key located on the motor assembly.
Control unit with built-in receiver for controlling 1/2 swing leaves.
Electronic clutch with convenient, quick travel adjustment and the option to adjust the delay of the second leaf.
Slowdown on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the ability to independently control the travel of each leaf.
BRACKET DIMENSIONS:
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

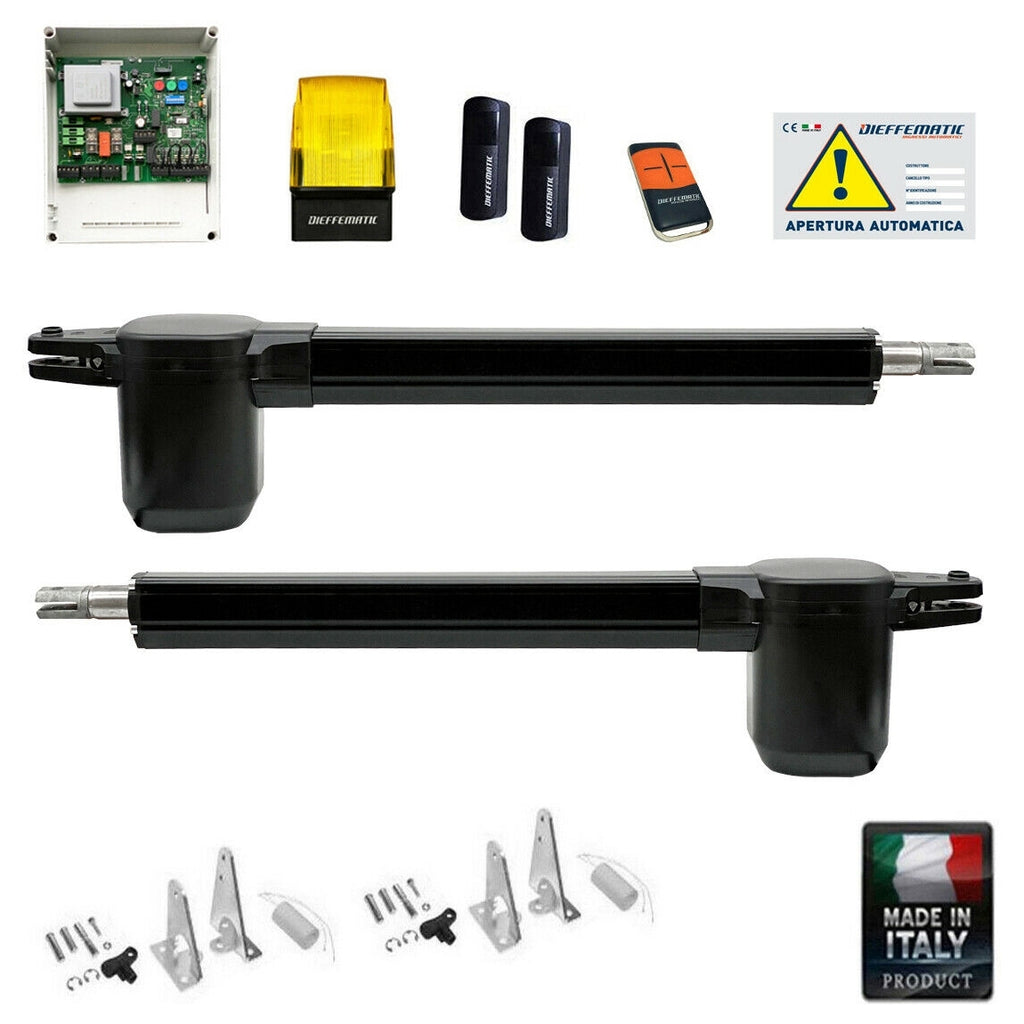

KIT CONTENTS:
No. 2 electromechanical linear actuators for condominium use, for outdoor use
Emergency release with key. No electric lock required.
Motor speed 1,400 rpm. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
No. 1 control unit with weatherproof box, motor force and slowdown adjustment trimmers, built-in obstacle detection, slowdown on opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, and automatic condominium mode. Pedestrian function via remote control only, overvoltage protection, inputs for photocells and safety edges, electric lock management, reverse kick, adjustable leaf offset during closing/opening, closing delay adjustment.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 40 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 pair of wall-mounted photocells
No. 1 230 V flashing light
No. 1 warning sign
No. 1 installation accessories, bolt-on/weld-on mounting brackets with bracket covers
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
