Description

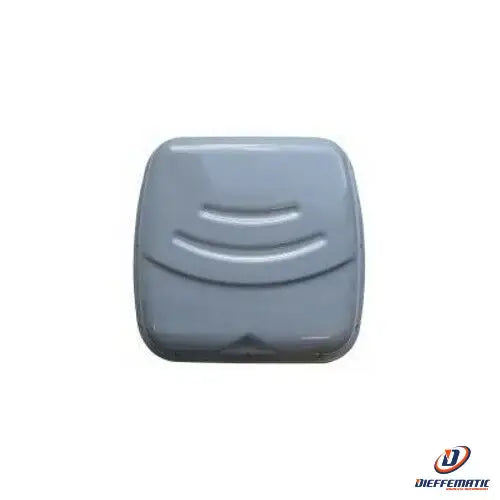

Single antenna UHF reader for vehicle identification, IP65, maximum range 7 m *
Mod. MEGAPROX7-N
MEGAPROX7-N is a UHF reader for the identification of stationary or moving vehicles, at 7 meters* distance and at high speed.
• Reading distance up to 7 meters* and at high speed
• Streamlined access, control and management of fleets, parks, regulated areas...
• Ultra-fast installation, simplified configuration, simplified adaptation to other systems on site (Data Clock and Wiegand 26 bits protocols)
• Electronics integrated into the antenna
• Fixing kit included
Power supply: 12 Vdc (from 9 Vdc to 36 Vdc)
Absorption: 2.5 A max @ 12 Vdc
Carrier Frequency: ETSI: 866 MHz (EU)
FCC: 915 MHz (US)
Card compatibility: EPC1 Gen 2 / ISO18000-6C
Mode: Read only
Coverage area: Up to 7m*
Communication interface: Data Clock, Wiegand 26 bit
Anti-collision system: Yes
Fixing: Wall on joint and pole
Operating temperature: -20°C / +55°C
Degree of protection: IP 66
Dimensions: 307 x 296 x 82 mm
