Description
230 V AC - 50 Hz
Mechanical limit switch
Integrated rescue maneuver

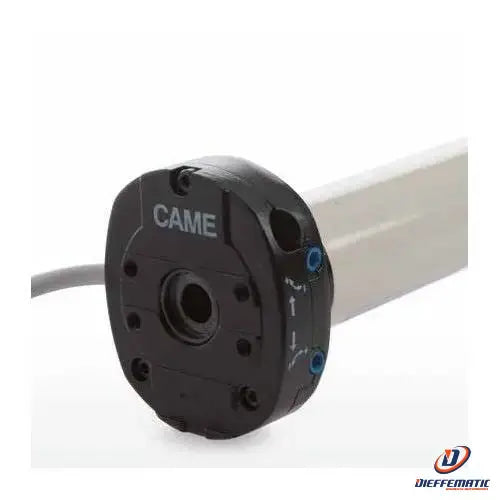

Mod. MONDRIAN M5 - Ø 45
• Possibility of use on 50 mm round or octagonal tube.
• Mechanical manual limit switch with progressive screw adjustment.
• Manual operation via emergency rod.
• Reduction ratio: 1:24
Torque (Nm): 20
Speed Rpm (rpm): 15
Weight lifted (Kg)*: 36
Endstop turns (turns): 23
Operating time (min): 4
Degree of protection (IP): 44
Absorption (A): 0.64
Power (W): 145
Length (mm) = L1: 526
Weight (Kg): 2.4
Package dimensions (mm): 650 x 120 x 120
Packaged engine weight (Kg): 2.8
24 month warranty
