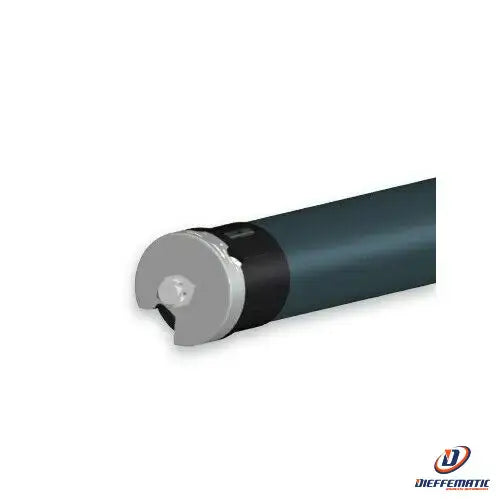

Tubular motor with mechanical limit switch, suitable for applications with vertical screens, drop-down awnings with side arms, roller shutters, and awnings with arms.

Mod. SM50-ST RSP 10/17 C2.5 B1
SKU 2010064

Versatile Applications: Ideal for roller shutters, drop-down awnings, and awnings with arms.

Precise Adjustment: Two-point mechanical limit switch, easily adjusted with the supplied key (up to 51 turns).

Quiet Operation: Low noise level of just 47 dB for excellent acoustic comfort.

Flexible Control: Standard push-button operation; can be connected in parallel via a control unit or made compatible with the HZ radio range by adding an external receiver.

Easy Installation: Round head with integrated square pin and pre-shaped 2.5-metre white cable.

Main Technical Specifications

Torque: 10 Nm

Speed: 17 rpm (revolutions per minute)

Power consumption: 120 W

Power supply: 230V / 50Hz

Motor diameter: 50 mm (suitable for rollers with a minimum internal diameter of 47 mm)

Dimensions: 526 mm x 62 mm x 62 mm

Protection rating: IP44 (Insulation Class I)

Power cable: VVF 4 wires x 0,75 mm², length 2,5 m

Thermal protection: Trips after 4 minutes

Operating temperature: from -20 °C to +60 °C

24-month warranty
