Description
Tubular motor with mechanical limit switch, suitable for applications on vertical screens, drop-arm awnings, roller shutters and arm awnings.
SM50-ST RH 10/17 230/50 C2.5M B1
Description

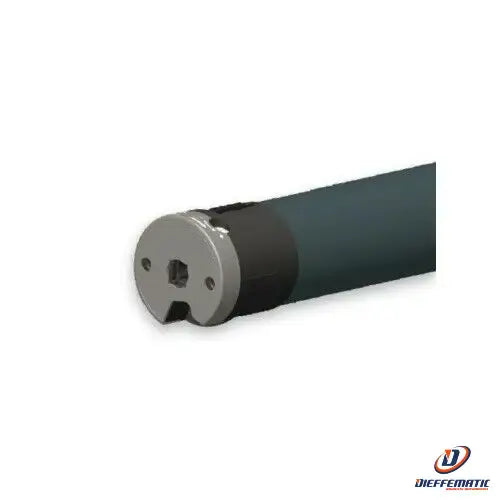

Ø50 tubular motor with mechanical limit switch
Round motor head
2 limit switches
Limit switches adjusted using the supplied key
Push-button operation
Can be connected in parallel via a control unit
TECHNICAL SPECIFICATIONS | SOMFY SM50-ST RH (10/17)
1. Mechanical data and performance
Rated torque: 10 Nm
Speed: 17 rpm (revolutions per minute)
Shape: Tubular
Diameter: 50 mm
Head type: Round (RH)
Manual override: Not included (neither internal nor external)
2. Electrical characteristics
Power supply: AC - RGE 1 (230V / 50Hz)
Motor type: Single-phase AC
Power range: 37.5 W to 750 W
3. Wiring and connection
Cable type: VVF (non-removable)
Length: 2.5 metres
Colour: White
Terminals: Stripped for connection to terminal block
24-month warranty
