Description

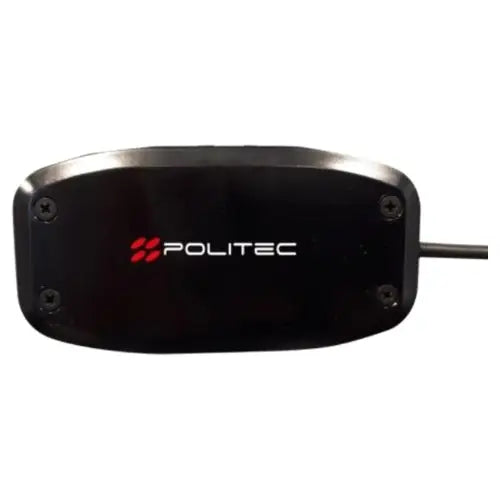

Triaxial perimeter sensor
GAPID SENSOR mod
SKU: GAPID SENSOR
GAPID is a MEMS sensor, which by exploiting the capabilities of a triaxial accelerometer is able to discriminate and/or detect any type of vibration or movement, providing the best protection for many application surfaces. Complete with 6 preset functions and 3 self-learning functions, anti-removal cover tamper, IP66 shockproof container and battery or 8-30Vdc power supply, GAPID represents the most modern evolution and innovation in the field of perimeter protections
Coverage area: 5m diameter
Programming: Calibration and function selector on board
Functions: 6 Standard Application Functions | 3 Self-learning functions (1 for alarm, 2 for non-alarm)
Power supply: 10-24 Vdc or 3.6V (selectable by jumper)
Autonomy: 2 years with 3.6V 2.7Ah battery
Outputs: Alarm (NC) | Tamper (NC) | Low Battery (OC NA to GND)
Dimensions (LxHxD): 102 x 52 x 19 mm
Max radio TX size: \
Material: Anti-scratch, UV-resistant black polycarbonate
Operating temperature: -40°C / +80°C
Environmental class: 4
24 month warranty
