Description
CAME U1901ML
COMPLETE KIT FOR SWING GATES WITH LEAVES UP TO 3,5 METRES WIDE, WITH 230V AC MOTOR
Model FROG A
POWER SUPPLY: 230V 50/60 Hz
MOTOR POWER SUPPLY: 230V 50/60 Hz
CURRENT DRAW: 1,9°
POWER: 200W
DUTY CYCLE: 30%
ADJUSTABLE TORQUE: 320 Nm
MOTOR THERMAL PROTECTION: 150 °C
OPERATING TIME (90° OPENING): 18s
OPERATING TEMPERATURE: -20 °C min. +55 °C max.
Opening time to 90° (s) 18
Max. leaf width (m) 3,5
Max. leaf weight (Kg) 300

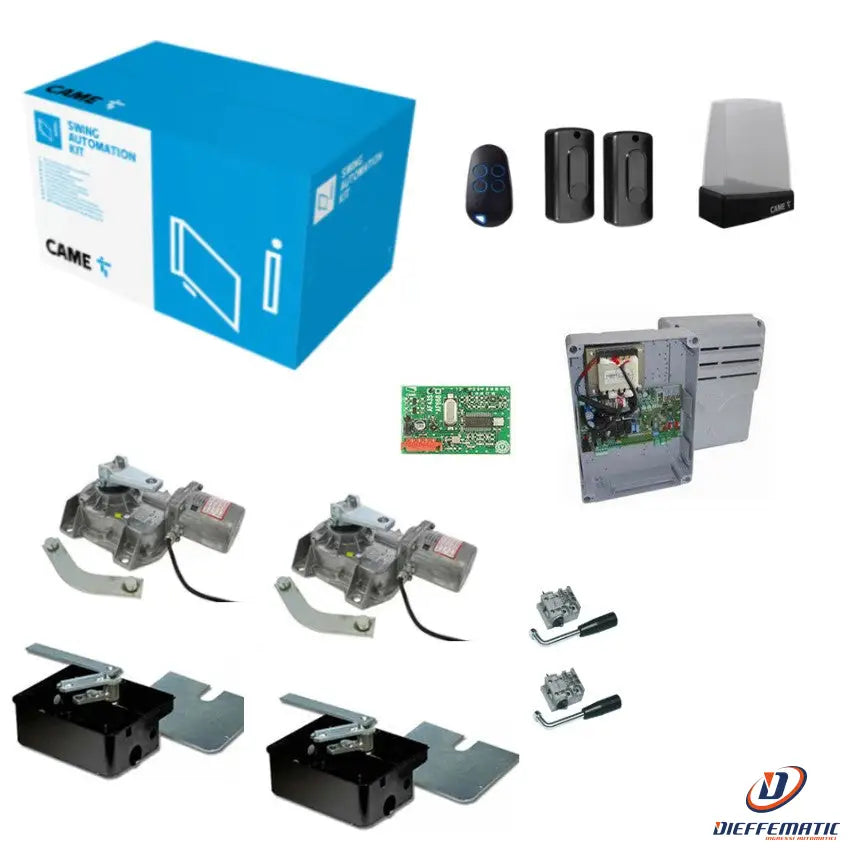

KIT CONTENTS:
2 001FROG-A Irreversible 230 V underground gearmotor with adjustable closing stop for swing gates with leaves up to 3,5 m long and weighing 400 kg.
2 001FROG-CFN Steel foundation box with cataphoresis treatment, complete with release coupling lever, gate fixing bracket, slots for column mounting and screw for adjusting the opening limit position.
2 001A4364 Lever-key release device.
1 002ZA3P Multi-function control panel for double-leaf swing gates, with limit switch management and slowdown speed adjustment.
1 001AF43S Plug-in 433,92 MHz radiofrequency board.
806TS-0310 TOP44FGN - Four-channel transmitter with new fixed-code coding at 433,92 MHz and self-learning function for TOP, TAM, TWIN and TTS series remote controls.
1 001DIR10 Pair of outdoor photocells, 12 - 24 V AC - DC. Range: 10 m.
806LA-0020 KRX1FXSW - LED warning light powered from 24 V AC - DC up to 230 V AC, with white cover.
1 GATE CONTROL BOARD
24-month warranty
