Description

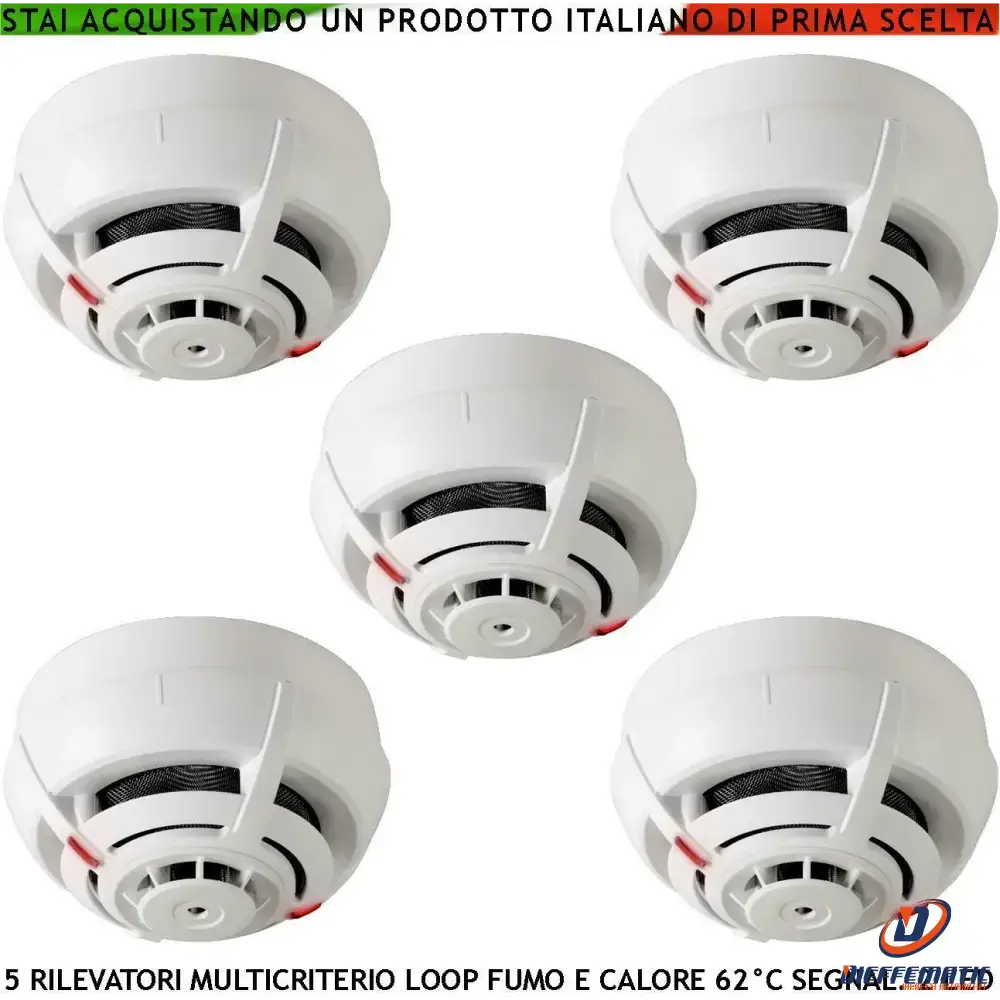

SMOKE SENSORS 5 MULTI-CRITERION FIRE-FIGHTING TEMPERATURE DETECTORS LOOP 2 LED OC OUTPUT 14 MA REMOTE SIGNALING - SV-RFT2LSMFTE
Mod. SV-RFT2LSMFTE
SKU: SV-RFT2LSMFTE
SV-RFT2LSMFTD Conventional analog Multicriteria Smoke Detector with Tyndall effect and Rate-of-Rate Temperature OR operation. To test the detector, bring a small magnet near it; the alarm is activated. The test Does not test the electronic part. The smoke sensor test is performed with SF-SMO canisters. Loop power supply 12-28Vdc. Absorption 50μA at 24Vdc. Alarm absorption 25mA. 360° LED visibility. Remote signaling output (via optional SF-LRS) 14 mA at 24Vdc. Operating temperature -10°C / +70°C. Maximum relative humidity 93% non-condensing. IP20 protection rating. White ABS container. Dimensions (without base): mm 106 x 52h Dimensions (with base): mm 106 h. Weight 150 gr. Regulations: EN54-7 CPR certificate: 0068-CPR-006/2015. DoP No. 005. Ceiling installation. Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects
LIST OF CE COMPONENT(S) FOR THE EXPANSION OR CONSTRUCTION OF A FIRE ALARM SYSTEM IN ACCORDANCE WITH THE LAW:
03 SV-RFT Multicriteria Smoke Detector Tyndall Effect and Fixed Temperature 62 ° C. Absorb. 50 µA in Alarm 25 mA Plug-in base. OC 14 mA output
01 SV-GAR Guarantee Certificate; Securvera Manufacturer's Warranty As per Law: 24 Months; Qualified Installation Compliant with DM37/2008 for life
01 SV-IST Detailed Instructions for Assembly. Current fire prevention regulations on risk assessment must be respected
Securvera Registered Trademark 663069: Fire Prevention Automations Entrance Control Sensors Alarm Wire and Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Fire Fighting System Kit Thermal Power Station SOS Extinguishing Intervention
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal Live Existence Control Line Isolator Sensors
Country of origin and Manufacture: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility other brands: Badenie Smoke Flame Temperature Detectors Conventional Systems
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SV-RFT2LSMFTD Conventional Tyndall Effect Smoke Detector
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
