Description
Complete kit for SLIDING GATE automation
1600 kg
OIL BATH
ideal for automating gates for intensive/industrial use
Professional
Model KV16 230 V
SKU: KIT-KV16
External-installation electromechanical gearmotor running in an OIL BATH, with all-metal gears for reliable performance
Sophisticated pre-wired electronic control unit.
Advanced: thanks to independent management of the opening and closing travel.
Safe: thanks to the photocell monitoring function, which checks that the photocells are working correctly before each movement.
Fully die-cast aluminium base.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

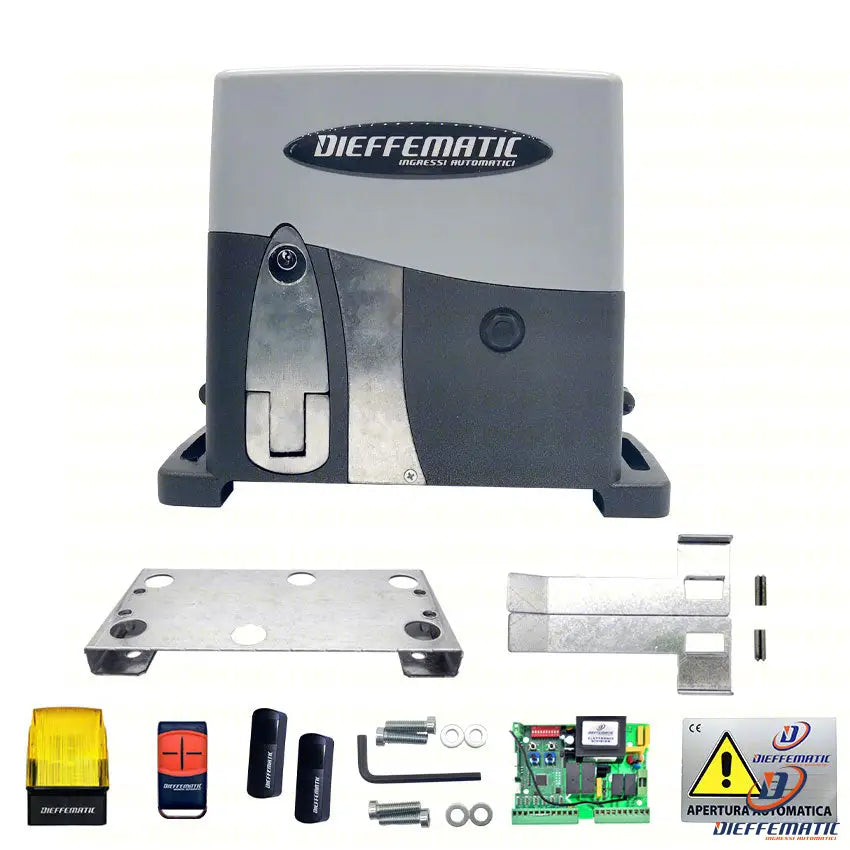

KIT CONTENTS:
No. 1 1600 kg electromechanical gearmotor (with built-in electronic control unit), 220 V power supply, key release, dimensions H257XL290XP135 mm. Speed 12 m/min (UNI 8612 standard), weight 13 kg
No. 1 galvanised foundation plate
No. 1 Control unit located in the motor casing, with motor force adjustment trimmer and obstacle detection, opening and closing slowdown, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel rolling-code remote control
No. 1 pair of wall-mounted photocells
No. 1 230 V flashing light
No. 1 Warning sign
No. 1 Installation accessories
No. 1 Instructions for assembling the mechanical and electronic parts in ITALIAN
24-month warranty
