Description
Complete kit for sliding gate automation
1600 kg
OIL-BATH
ideal for automating gates for intensive/industrial use
Professional
Mod. KV16 230 V
SKU: KIT-KV16
Oil-bath electromechanical gearmotor for external installation, with all-metal gears for guaranteed performance and reliability
Sophisticated pre-wired electronic control unit.
Advanced: with independent management of opening and closing travel.
Safe: thanks to the photocell monitoring function, which checks that the photocells are working correctly before every movement.
All-aluminium die-cast base.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

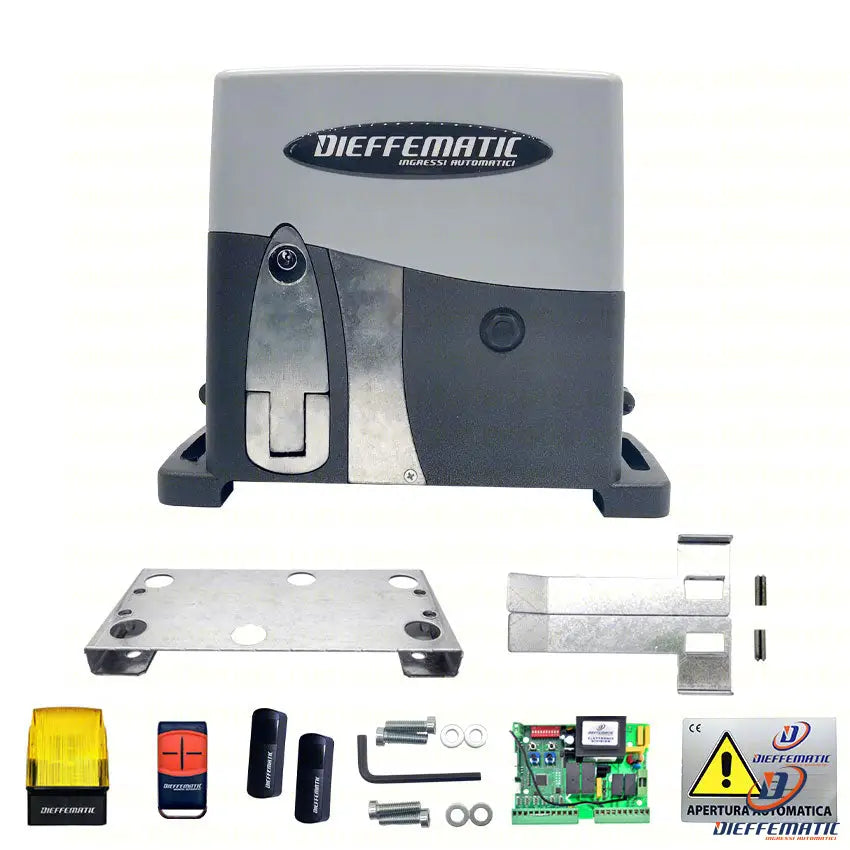

KIT CONTENTS:
1 1600 kg electromechanical gearmotor (with built-in electronic control unit), 220 V power supply with key release, dimensions H257 x W290 x D135 mm. Speed 12 m/min (UNI 8612 standards), weight 13 kg
1 galvanized foundation plate
1 control unit housed in the motor casing, with motor force adjustment trimmer and obstacle detection, opening and closing slowdown, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode. Pedestrian entrance, courtesy light, overvoltage protection, inputs for photocells and safety edges
1 single-channel radio receiver built into the control unit (433.9 MHz)
1 antenna built into the control unit, range 20 metres (433.9 MHz)
1 4-channel Rolling Code remote control
1 pair of wall-mounted photocells
1 230 V flashing light
1 warning sign
1 set of installation accessories
1 set of instructions for installing the mechanical and electronic components in ITALIAN
24-month warranty
